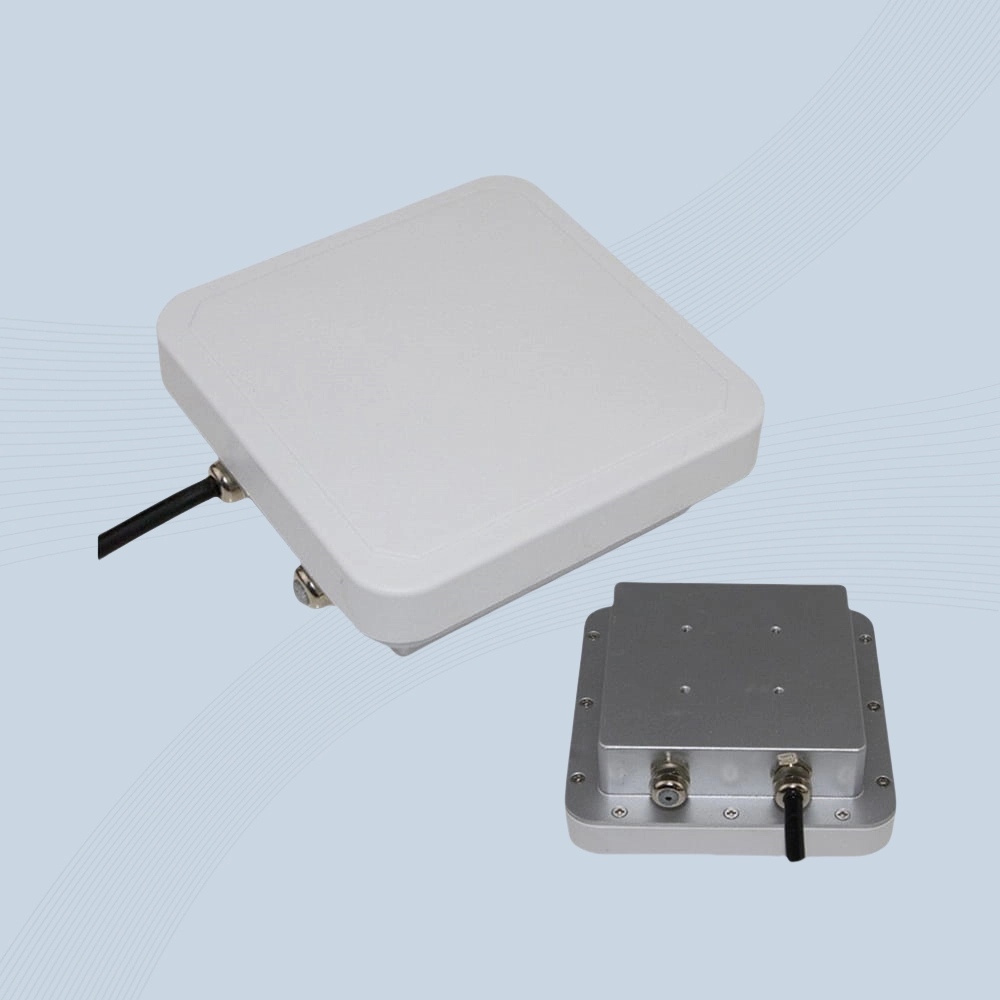

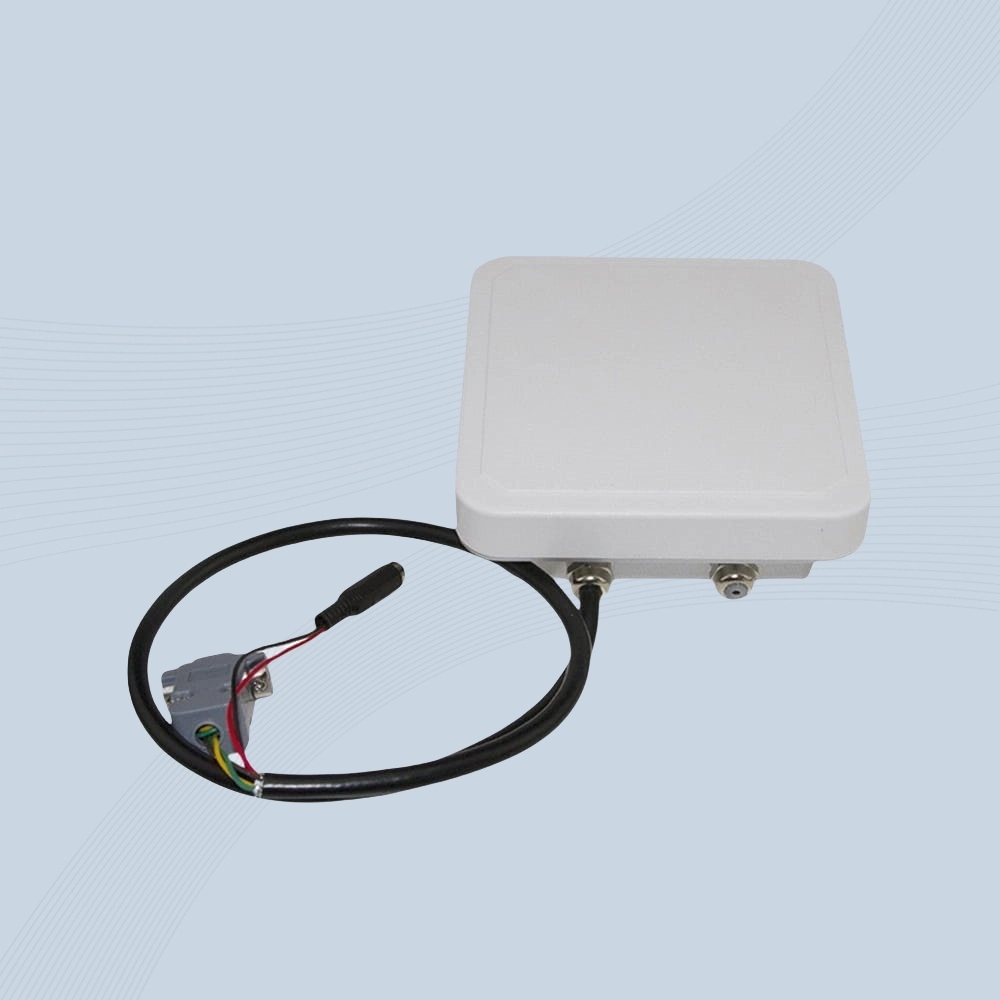

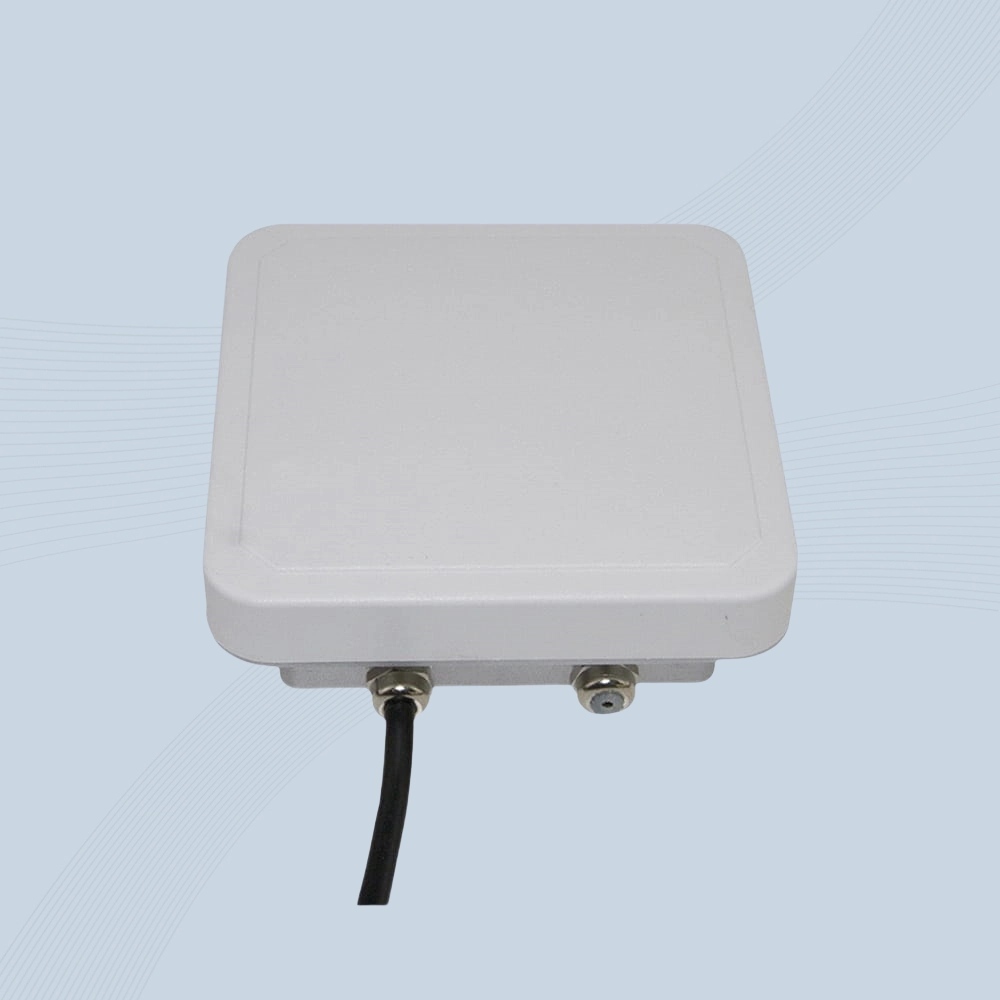

GS-D4L Industrial-Grade Long-Range RFID Reader 20M Extended Range RFID Solution for Warehouse Automation
The GS-D4L achieves exceptional 20-meter scanning capability thanks to its advanced 4dBi antenna design and cutting-edge Impinj R2000 processing technology. This rugged reader is designed for demanding industrial applications, maintaining stable performance across extreme temperature ranges from -30°C to 85°C. It processes over 500 tags per second, features an IP67-rated heavy-duty aluminum housing, offers reliable operation over a wide temperature range, and utilizes circularly polarized antenna technology.
Item No :
GS-D4LFrequency :
840MHz～960MHzProtocol :
EPC C1G2, ISO 18000-6B, ISO 18000-6CChip :
Impinj R2000Function :
RFID read & write, Multiple label identification(For more RFID tag features, please use tagapplication software)
Applicable to warehouse logistics, library, supermarket, hospital,access control and other UHF RFID tag items readfor behavioraloperations. RFID tags can read distances of more than6meters,data connection via WiFi and mobile phones. Excellent performance, agile sensing, strong anti-interferenceability, tomeet the needs of various environments
| SPECIFICATIONS | |
| RF SPECIFICATION | |
| RF Chip | Impinj R2000 |
| Frequency Range | 840MHz～960MHz |
| Protocol | EPC C1G2, ISO 18000-6B, ISO 18000-6C |
| Frequency Band (Optional) |
ETSI: 865～868MH Frequency Band (Optional) z JP: 916.8～920.4MHz TW: 922.25~927.75MHz ID: 923.125~925.125MHz RUS: 866.6~867.4 MHz TEST: 802.75~998.75MHz JP_LBT: 916.8~920.8MHz |
| Antenna Gain |
0-30 dbm adjustable |
| Read Distance |
0-5m adjustable |
| Communication |
RJ45, RS232 |
| Function |
RFID read & write, Multiple label identification(For more RFID tag features, please use tagapplication software) |
| BASIC SPECIFICATION | |
| Material | Aluminum |
| Power Supply | DC 5V |
| Working Humidity | 10%RH~90%RH |
| Operat Temperature | 0 ºC ~ 60 ºC |

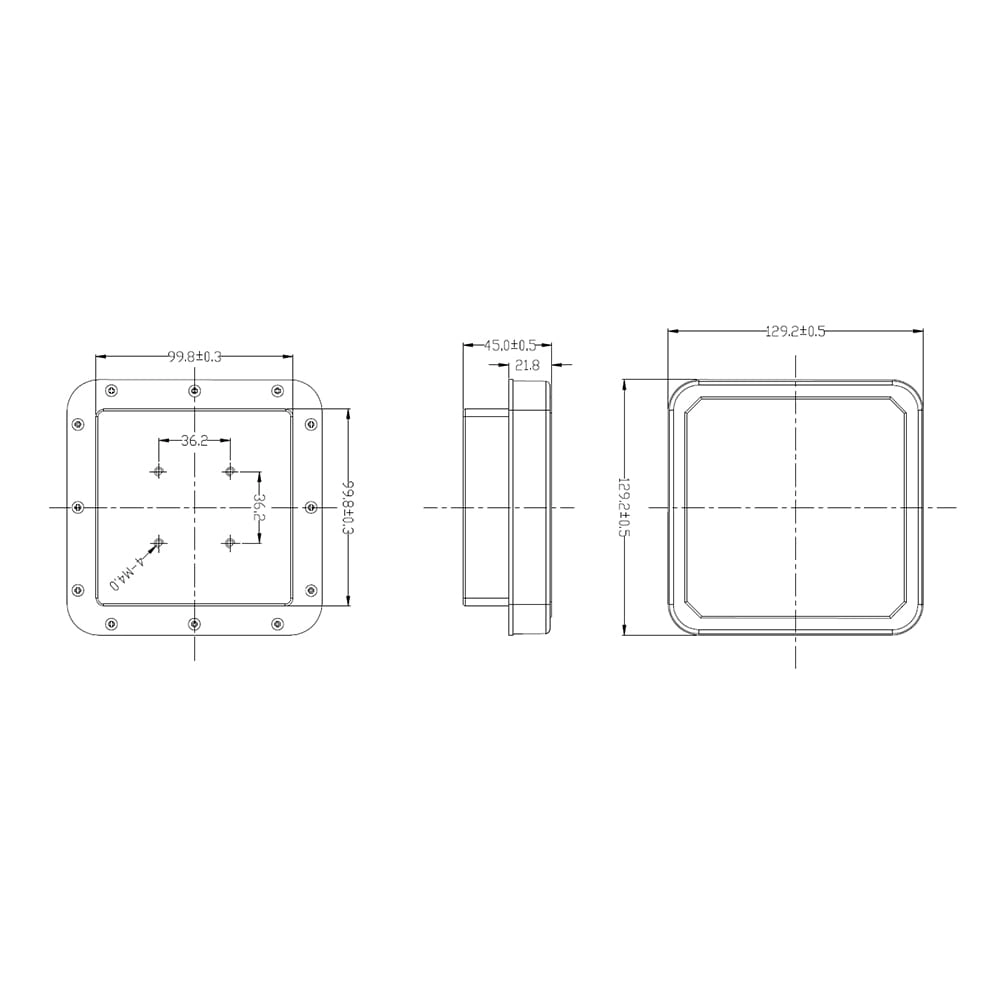

| Size | 12.9 x 12.9 x 4.5. cm |
| Weight | About 2kg |
