GS-A5C DIY RFID Antenna Kit Customizable 840-960MHz Antenna for RFID Hobbyists & Engineers
This comprehensive DIY antenna solution equips creators with all materials to construct a professional-grade 5dBi circular-polarized UHF antenna. Featuring open-source PCB manufacturing files and pre-validated components (SMA connectors, FR4 boards), builders gain customizable 840-960MHz frequency tuning, precise 50Ω impedance matching, and <3dB axial ratio performance – ideal for developing RFID security prototypes, warehouse tracking systems, and IoT device experimentation.
Item No :
GS-A5CReading distance :
0-8m adjustableFrequency :
840MHz～960MHzProtocol :
EPC C1G2, ISO 18000-6B, ISO 18000-6CAntenna Gain :
0-33 dbm adjustable
The GS-A5C UHF RFID Antenna delivers professional-gradeperformance with >5dBi gain and ultra-low 1.4:1 VSWR across 840-960MHz spectrum. Engineered with military-grade PCB materialsand IP65 aluminum housing, it ensures stable RFID tag reading intemperature extremes (-20°C~60°C) for warehouse automation,smart logistics, and industrial IoT deployments.
| SPECIFICATIONS | |
| RF SPECIFICATION | |
| RF Chip | Impinj R2000 |
| Frequency Range | 840MHz～960MHz |
| Protocol | EPC C1G2, ISO 18000-6B, ISO 18000-6C |
| Antenna Gain |
0-33 dbm adjustable |
| Read Distance |
0-8m adjustable |
| Communication |
RJ45, RS232 |
| Polarization Type |
linear polarization |
| Peak Gain @915MHz |
5dBi |
| Axial Ratio |
<3dB |
| H-plane HPBW |
105° |
| E-plane HPBW |
90° |
| VSWR |
≤1.4:1 |
| Impedance |
50Ω |
| Connector Type |
SMA-KF |

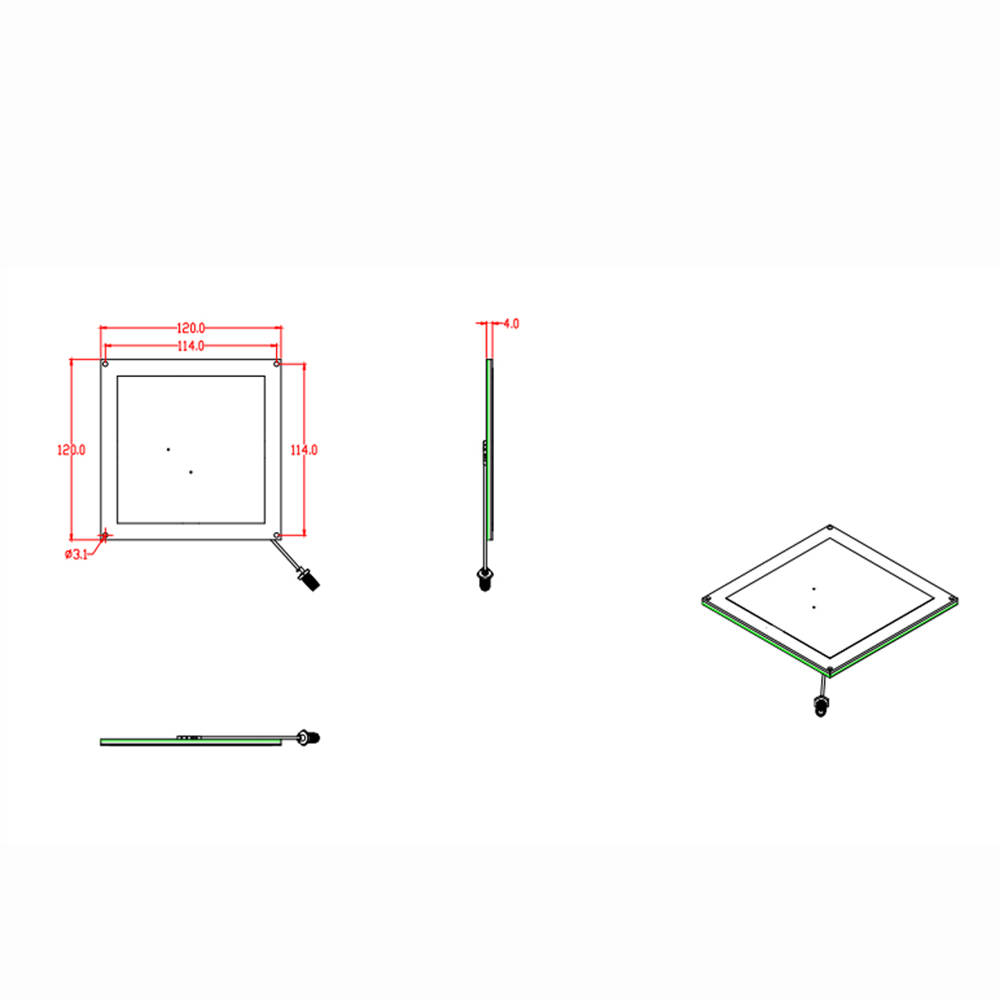

| Size |
120*120*8mm |
| Weight |
300g |
| BASIC SPECIFICATION | |
| Material | ABS+Aluminum 6061 |
| Working Humidity | 10%RH~90%RH |
| Operat Temperature | -40°C~+85°C |
| IP Rating | IP65 |
