GS-R16 16-port UHF RFID Fixed Reader for Automated Inventory Management

GS-R16 UHF RFID Fixed Reader: A 16-channel enterprise solution tailored for automated identification in logistics networks, factory floors, and intelligent storage systems. Equipped with ISO 18000-6C/EPC C1G2 protocol support, it captures data at 400+ tags per second and delivers direct WMS interoperability. The hardened aluminum enclosure and extended operating range (-20°C to 60°C) ensure resilience in industrial settings.

Item No :
GS-R16
Frequency :
840MHz～960MHz
Protocol :
EPC C1G2, ISO 18000-6B, ISO 18000-6C, GB/T29768-2013 (optional)
Chip :
Impinj R2000
Function :
RFID read & write, Multiple label identification, Labeldata filtering Function , Quantity statistics, RSSI perception, RF power regulation

Inquiry Now

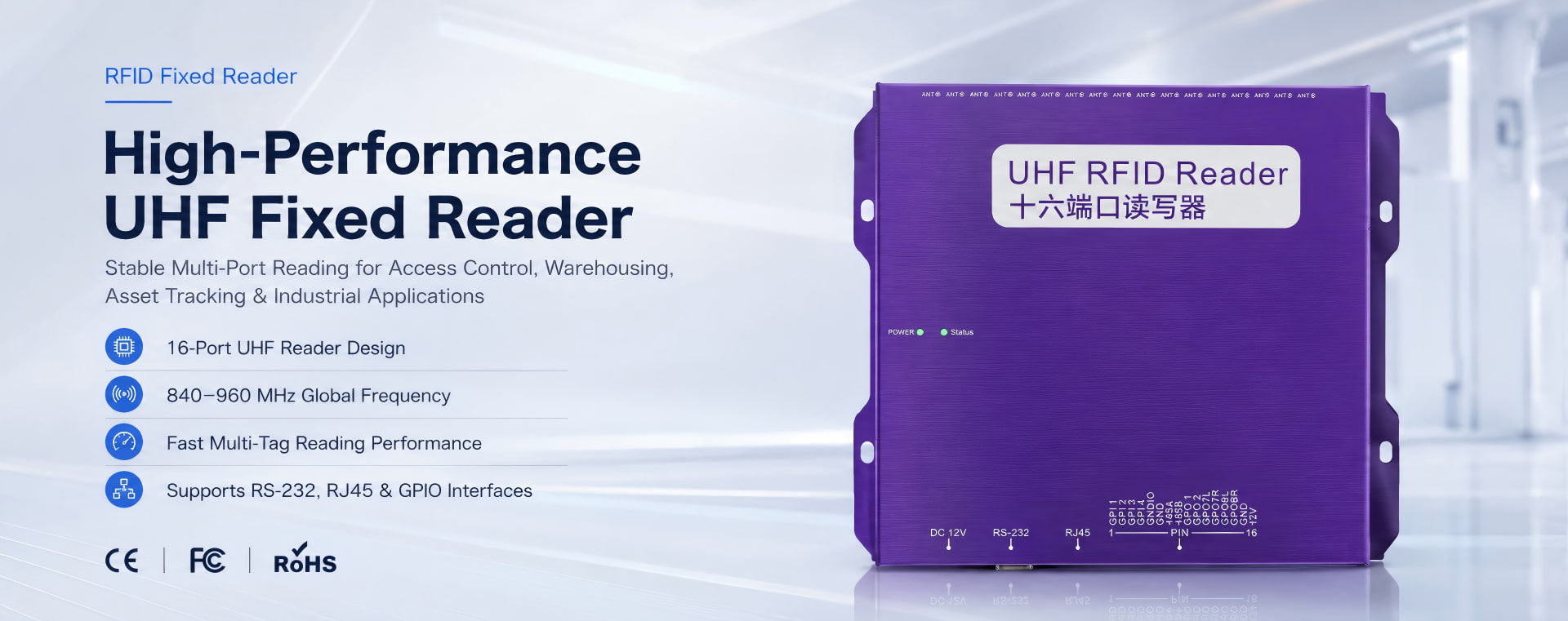

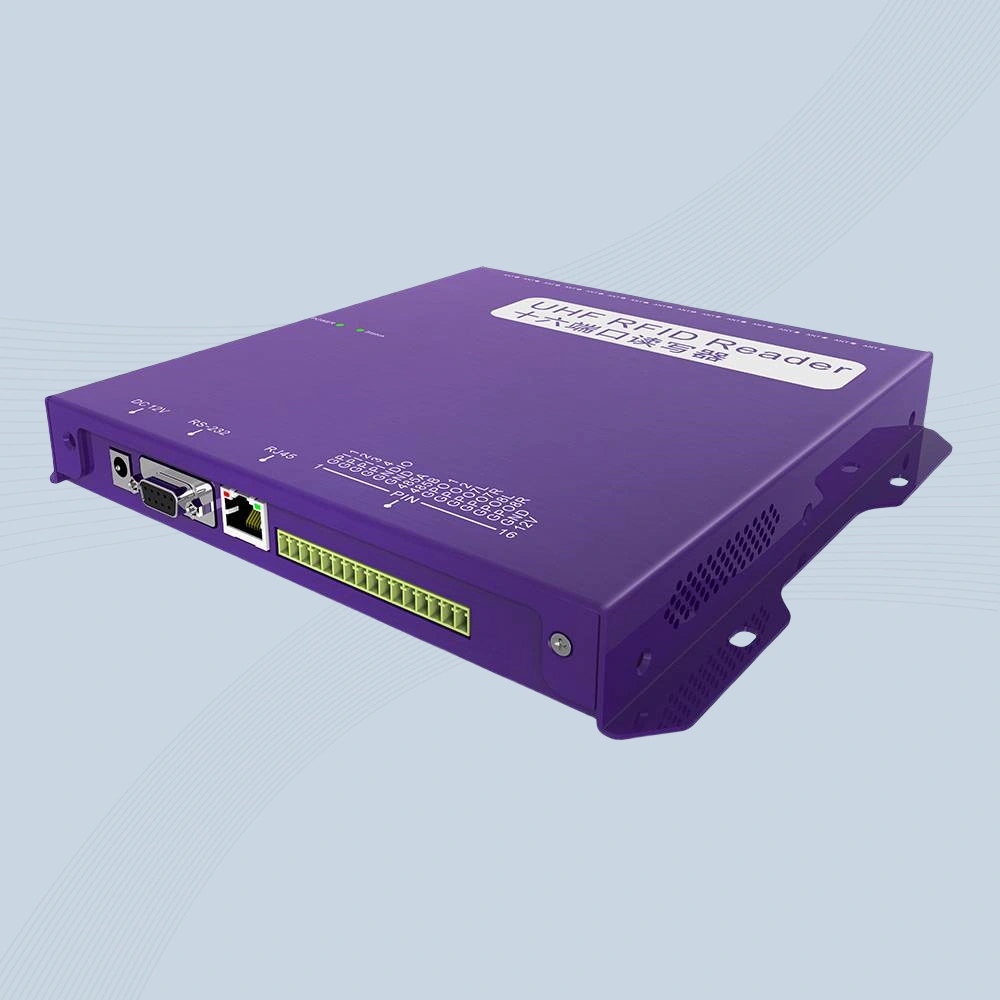

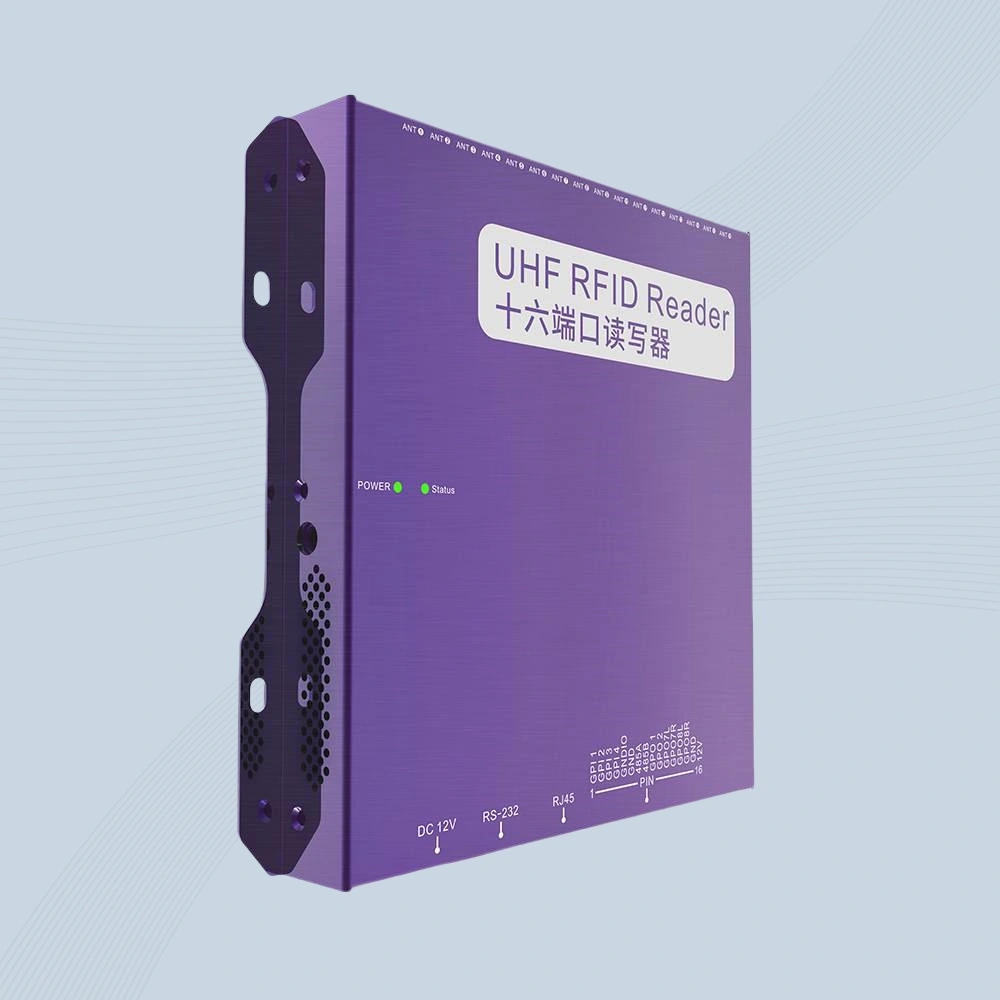

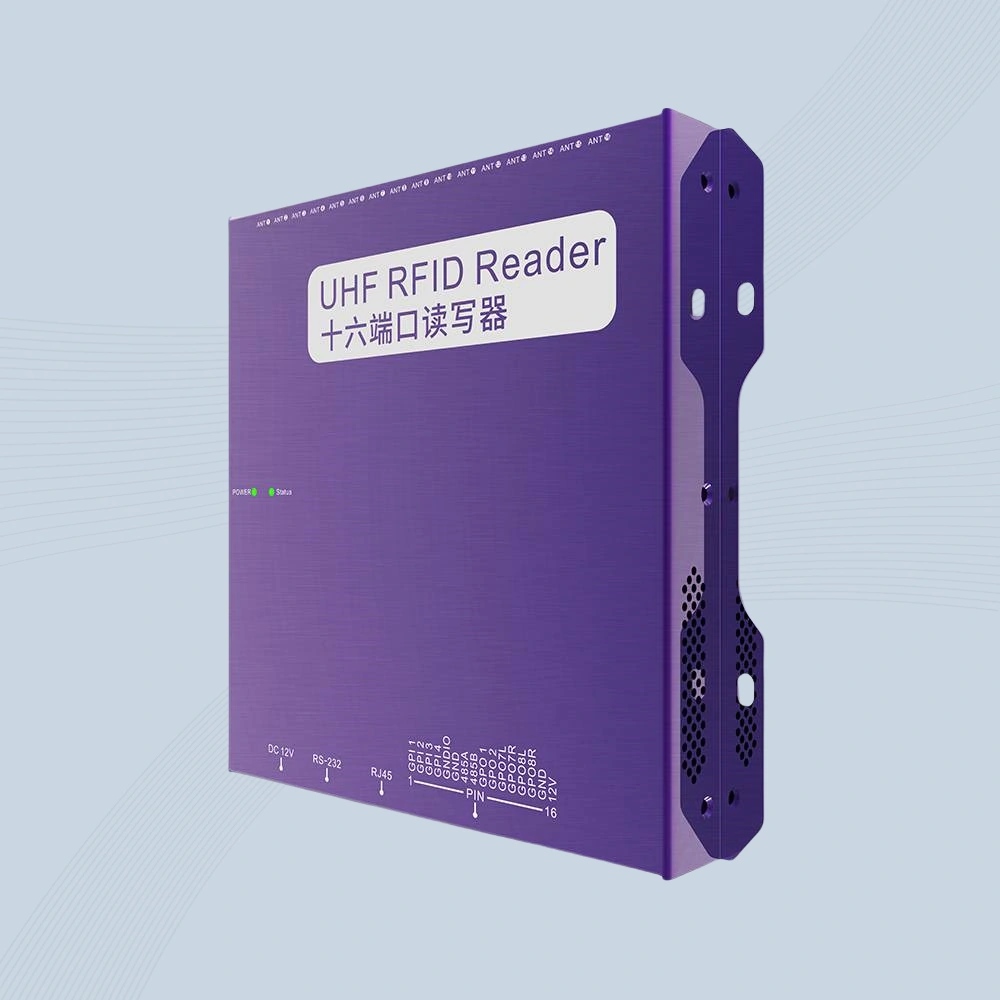

GS-R16 UHF RFID Fixed Reader

Applied to RFID tag reading, unique algorithmfast multi-tag identification, support data filtering, multi-protocol expansion.Widely used in vehicle inspection, customs clearance, vehicle inspection, personnel entry and exit, asset entry andexit, electronic tickets, file management, jewelry management, storage management and other fields.

RF channel is based on the special UHF RFID chip R2000 with excellent performance. It has strong expansibility, stableperformance and powerful function, and can meet a variety of applications
This reader has excellent reading performance,the reading distance is up to 20M, the writing distance is upto10M, and the reading speed is greater more than 500 pcs/s
Support a 485 interface, 3 GPO output, 2 GPI input, support USB output, support HDMI FHD output

SPECIFICATIONS
RF SPECIFICATIONS
Identification Method	UHF
RF Chip	Impinj R2000
Frequency Range	840MHz～960MHz
Protocol	EPC C1G2, ISO 18000-6B, ISO 18000-6C, GB/T29768-2013 (optional)
Frequency Band(Optional)	ETSI: 865～868MHz, JP: 916.8～920.4MHz, TW: 922.25~927.75MHz, ID: 923.125~925.125MHz, RUS: 866.6~867.4MHz, TEST: 802.75~998.75MHz, JP_LBT: 916.8~920.8MHz(Please tell our sales which band do youwant beforeordering)
Modulation mode	DSB-ASK, PR-ASK
Function	RFID read & write, Multiple label identification, Labeldata filtering Function , Quantity statistics, RSSI perception, RF power regulation
R/W Capability	Read: 0-1500 cm ; Write: 0-700 cm; 600+pcs/s
RF Interface	16SMA
HARDWARE SPECIFIVATIONS
System Support	Android 4.4
Hardware	4-core Cortex-A9 1.6 GHz, 1G RAM, 8GROM
Display	HDMI 1080P@60Hz
Communication	RJ45 / RS232 / 12-PIN I/O
FUNCTION SELECTION
Wireless Network	WiFi / 4G Optional
Bluetooth	Optional
BASIC SPECIFICATION
Material	Aluminum
Power Supply	12V / 3A
Working Humidity	10%RH~90%RH
Operat Temperature	0 ºC ~ 60 ºC
Size	22.1x 21 x 2.9 cm
