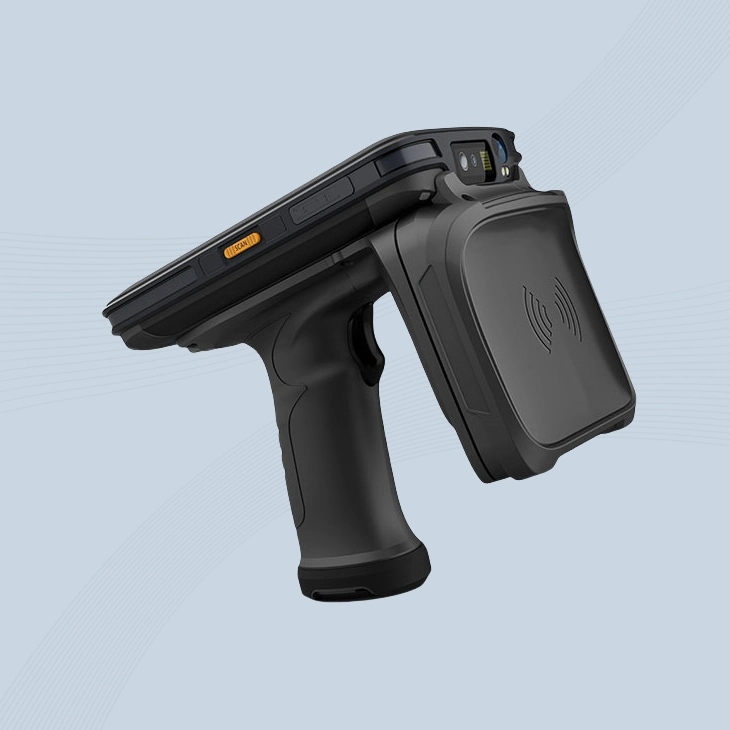

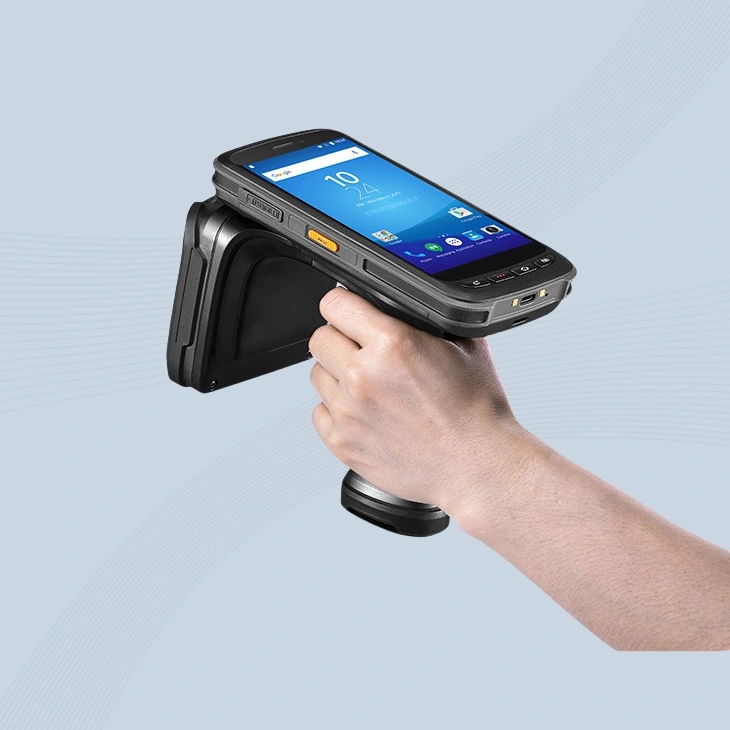

GS-C72 UHF RFID Handheld Reader Designed for rugged inventory control across supply chain environments
Engineered for extreme environments, this UHF RFID handheld reader features a pistol-grip trigger and directional linear antenna for precision pallet scanning. Its magnesium core survives repeated 3m drops, while IP69K-rated seals resist high-pressure washdowns.
The instant 800 tags/sec capture speed with multi-tag filtering enables single-operator yard inventories. Bluetooth 5.2 pairs with phones for field reports without computers.
Item No :
GS-C72Frequency :
13.56 MHzProtocol :
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etcChip :
M1 card (S50, S70), CPU card, NFC tags, etc.Function :
RFID read & write, Multiple label identification, Labeldata filtering Function , Quantity statistics, RSSI perception, RF power regulation
C72 is an industrial-grade Android mobile computer. With an in-build Zebra scan engine, the device ensures powerful barcode scanning performance that can accurately & quickly read various Symbologies of 1D / 2D barcode labels even if the barcode is dirty, damaged, or wrinkled. In addition, C72 features Android 11 / 13 OS, Octa-core processor, 8000mAh powerful battery, 13 MP camera, and optional NFC reading. The device is perfectly suitable for various applications in power inspection, asset management, retail, warehousing, logistics, finance & manufacturing industries, etc.
| SPECIFICATIONS | |
| NFC | |
| RF Chip | M1 card (S50, S70), CPU card, NFC tags, etc |
| Frequency Range | 840MHz～960MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc |
| Range | 2-4 cm |
| Performance | |
| Operating System | Android 11/13; GMS, 90-day security updates, ZeroTouch, FOTA, Soti MobiControl, SafeUEM supported. |
| CPU | Octa-core, 2.3GHz |
| RAM+ROM | 4GB + 64GB |
| Expansion | Supports up to 256GB Micro SD (TF) card |
| Communication | |
| WLAN | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna |
| Bluetooth | Bluetooth 5.0 |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| Physical Characteristics |
|
| Dimensions | 164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in. |
| Weight | 654 g / 23.07 oz |
| Display | 5.2'' IPS LTPS 1920 x 1080 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Expansion Slot | 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card |
| Interfaces | USB 2.0 Type-C, OTG, TypeC headphones supported |
| Sensors | Light sensor, proximity sensor, gravity sensor |
| Notification | Sound, LED indicator |
| Audio | 1 microphone; 1 speaker; receiver |
| Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
| User Environment | |
| Operating Temp. | -4 o F to 122 o F / -20 o C to 50 o C |
| Storage Temp. | -40 o F to 158 o F / -40 o C to 70 o C |
| Humidity | 5% RH - 95% RH non condensing |
| Drop Specification | Multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5 m / 1.64 ft. falls at room temperature |
| Sealing | IP65 per IEC sealing specifications |
| ESD | ±15 KV air discharge, ±6 KV conductive discharge |
