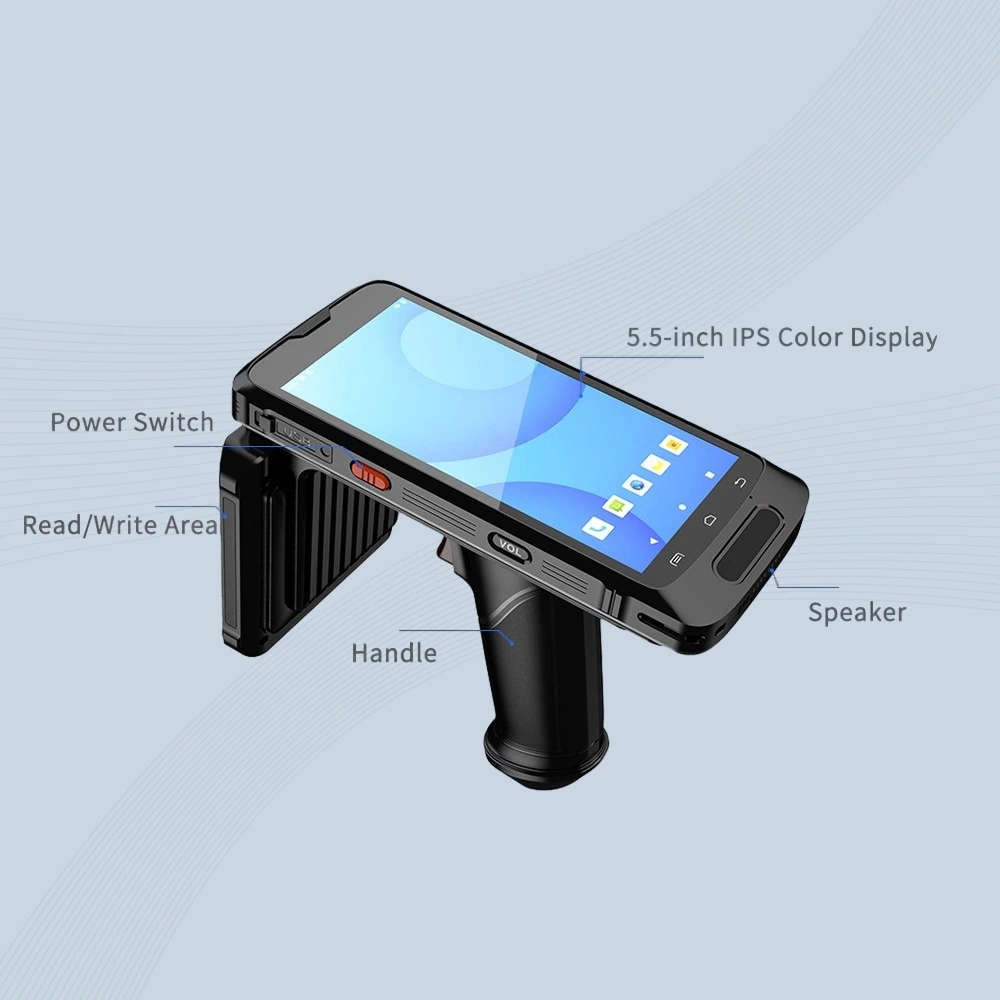

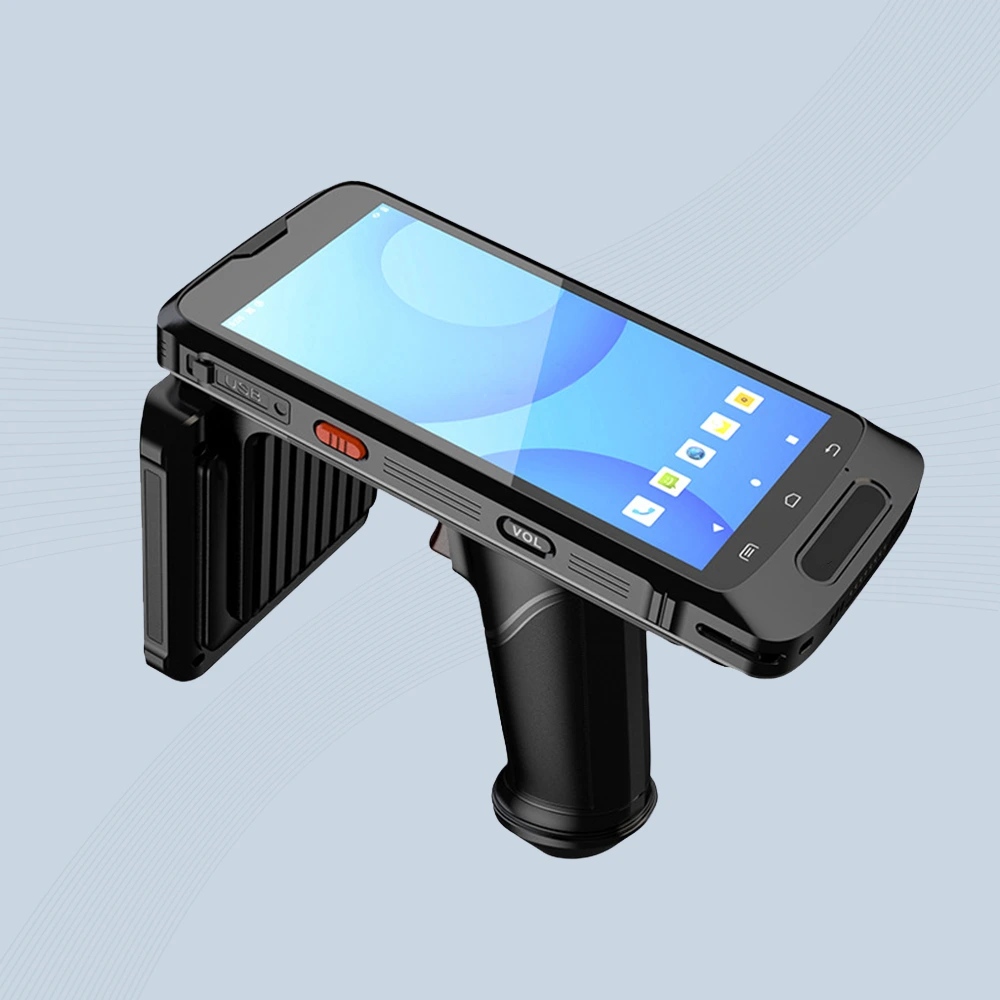

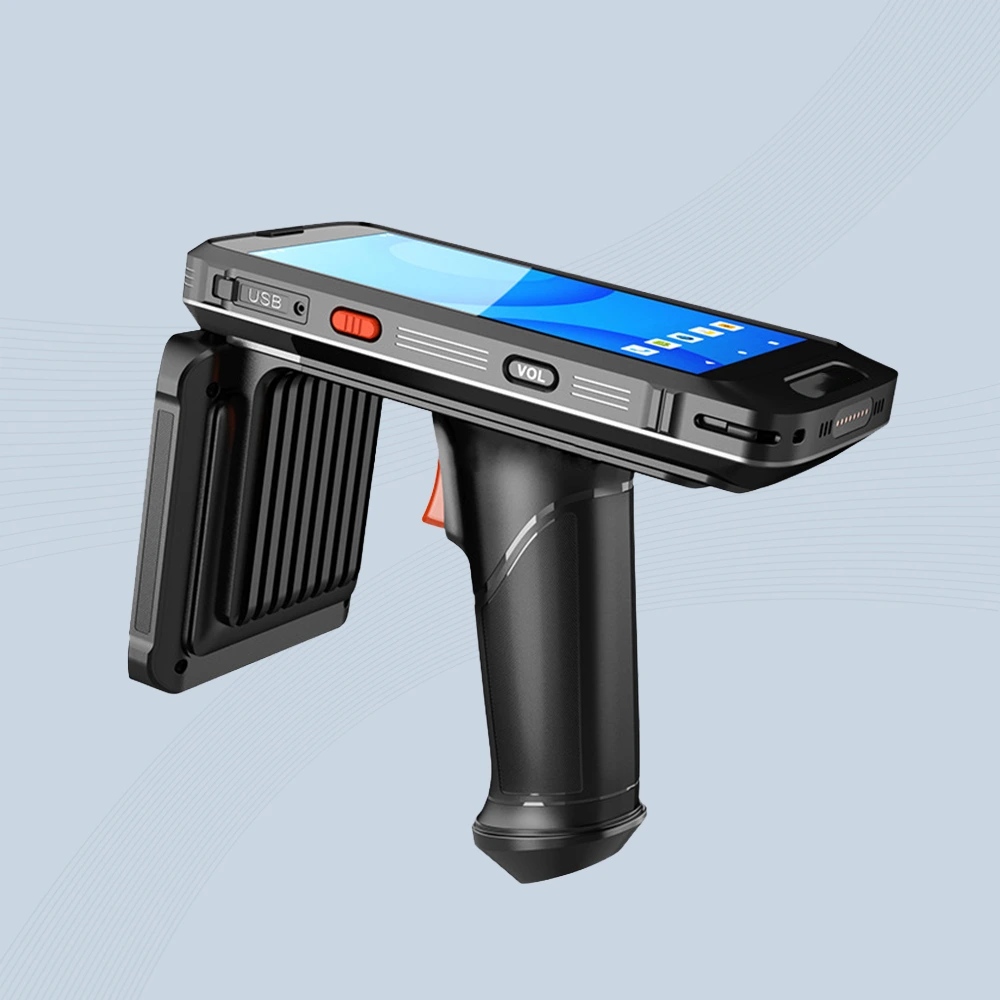

GS-B3 Pro RFID Reader Handheld Multi-Protocol RFID Scanning for Real-Time Data Capture in Harsh Conditions
Engineered for demanding operational environments, the GS-B3 Pro Industrial RFID Handheld delivers multi-technology data capture combining UHF RFID, NFC communication, barcode scanning, and card recognition capabilities. Powered by an octa-core 2.0GHz processor and Android 10.0 platform, this rugged device achieves 12+ hours of continuous scanning operations for logistics tracking, manufacturing asset management, and retail inventory applications.
Item No :
GS-B3 ProFrequency :
840MHz～960MHzProtocol :
EPC C1G2, ISO 18000-6C, ISO 18000-6BChip :
Impinj R2000Function :
RFID read & write, Multiple label identification, Labeldata filtering Function , Quantity statistics, RSSI perception, RF power regulation
Applicable to warehouse logistics, library, supermarket,hospital and other UHF RFID tag items read and write,information registration, telephone communication other functions
| SPECIFICATIONS | |
| RF SPECIFICATION | |
| RF Chip | Impinj R2000 |
| Frequency Range | 840MHz～960MHz |
| Protocol | EPC C1G2, ISO 18000-6C, ISO 18000-6B |
| Range | 2-4 cm |
| Antenna | 4dBi |
| Function | RFID read & write, Multiple label identification(For more RFID tag features, please use GSRFID tag application software) |
| HARDWARE SPECIFICATION | |
| System Support | Android 10 |
| Hardware |
Cortex-A53, 8-core 2.3GHz CPU,3G RAM, 32G ROM,4G RAM, 64G ROM(optional) |
| Display | 720 x 1440, 5.5-inch IPS LTPS screen |
| Communication | USB 2.0 Type-C，OTG |
| Battery | 7200 mAh |
| FUNCTION SELECTION | |
| Bar Code | Zebra SE965 / Honeywell N4313 Optional |
| QR Code | Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP;Honeywell: N6603 Optional |
| Camera | 13 megapixels Optional |
| BASIC SPECIFICATION |
|
| Material | Aluminum + ABS |
| Power Supply | 12V / 5A |
| Working Humidity | 5%RH~95%RH |
| Operat Temperature | -20 ºC ~ 50 ºC |
| Size | 168 x 76 x 28 cm |
| Weight | about 500g |
