GS-GT2B RFID Aviation Tool Cabinet AS9110-Certified Tool Control with Precision Tracking

The GS-GT2B Smart Aviation Tool Management System establishes new benchmarks in aircraft maintenance security through multi-OS compatibility and advanced RAIN RFID technology. Featuring a crystal-clear 14-inch display and powerful processing capabilities, it delivers exceptional tool identification precision across multiple storage tiers. Constructed with aerospace-grade steel and available environmental controls, it maintains flawless FOD prevention across varying hangar conditions.

Item No :
GS-GT2B
Frequency :
840MHz～960MHz adjustable
Protocol :
EPC C1G2, ISO 18000-6B, ISO 18000-6C
Chip :
Impinj R2000
Function :
RFID read function, Multiple label identification, LabeFunction label data filtering, RSSI perception, Quantity statistics

Inquiry Now

RFID Cabinet

The GS-GT2B Industrial RFID Cabinet revolutionizes tool management with its 14" HD touchscreen (1280×800) and Impinj R2000 UHF technology. Featuring optional dehumidification and dual OS (Windows/Android) on RK3399 processor, this 2000×1100×600mm cabinet delivers 99.9% read accuracy across 840-960MHz spectrum. With multi-authentication (HFcard/fingerprint/face ID) and ≤150W power efficiency ensures 24/7 operation in 0-60℃ environments.

14-inch capacitive touch screen with 1920 ×1080 resolution
RFID technology 840~960MHz optional, support protocol extension Multiple interf
Multiple interfaces: RJ45, wifi, 4G, alarminput etc
Support multiple cabinets in parallel, optional Windows/Android system
Support automatic record receiving, return, constant temperature dehumidification preservation, regular calibration and inspection reminder

SPECIFICATIONS
RF SPECIFICATION
RF Chip	Impinj R2000
Frequency Range	840MHz～960MHz adjustable
Protocol	EPC C1G2, ISO 18000-6B, ISO 18000-6C
Capacity	4 floors / 6 floors
Product Capacity	1000 pcs (according of itemsize)
Read Distance	5-50cm Adjustable
Scan Speed	≤5s/200pcs
Polarization Type	linear polarization
Function	RFID read function, Multiple label identification, LabeFunction label data filtering, RSSI perception, Quantity statistics
HARDWARE SPECIFICATION
System Support	Windows / Android (optional)
Hardware	I5 CPU, 4G RAM, 128G RO Hardware M RK3399 CPU, 4GRAM, 16G ROM (optional)
Display	1920 × 1080, 14-inch capacitive touch screen( 21-incDisplay hoptional)
Communication	RJ45 10/100Mbps
BASIC SPECIFICATION
Material	Carbon steel plate, Glass
Power Supply	AC 110-220V 50Hz 50W
Working Humidity	10%RH~90%RH
Operat Temperature	0 ºC ~ 60 ºC

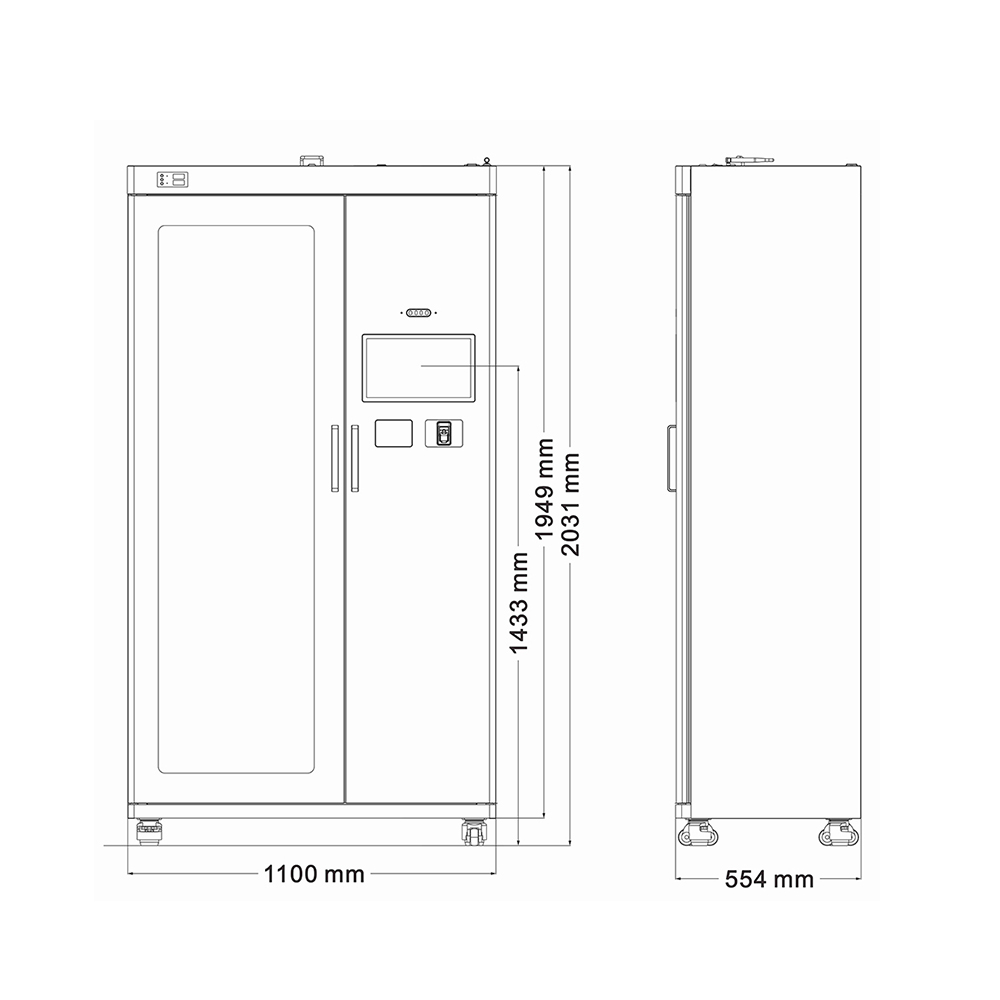

Size	2000×1100×600mm
