GS-DPA Desktop RFID Tagging Station Industrial RFID Encoding & Intelligence Hub for High-Volume Operations

The GS-DPA Industrial Encoding Station redefines asset management through professional-grade UHF RFID technology, delivering:

Centralized Operational Control: Full HD capacitive touchscreen for precision workflow management

Lightning-Speed Processing: 50+ ISO 18000-6C compliant tags encoded per second at 99.9% accuracy

Extreme Environment Resilience: IP65-rated carbon steel construction withstands demanding industrial settings

Seamless Enterprise Integration: Real-time SAP®/Oracle® connectivity for automated workflow synchronization

Item No :
GS-DPA
Frequency :
840MHz～960MHz adjustable
Protocol :
EPC C1G2, ISO 18000-6B, ISO 18000-6C
Chip :
Impinj R2000
Function :
RFID read function, Multiple label identification, LabeFunction label data filtering, RSSI perception, Quantity statistics

Inquiry Now

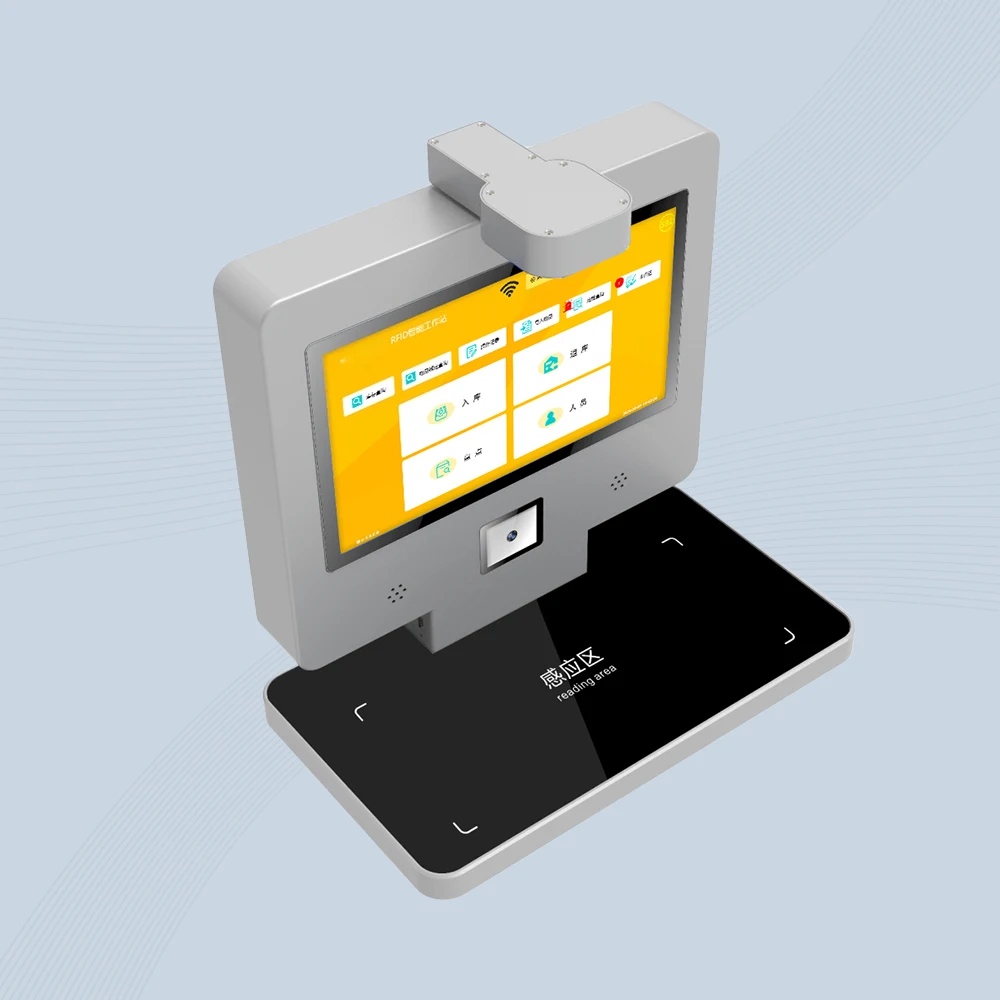

Desktop RFID Tagging Station

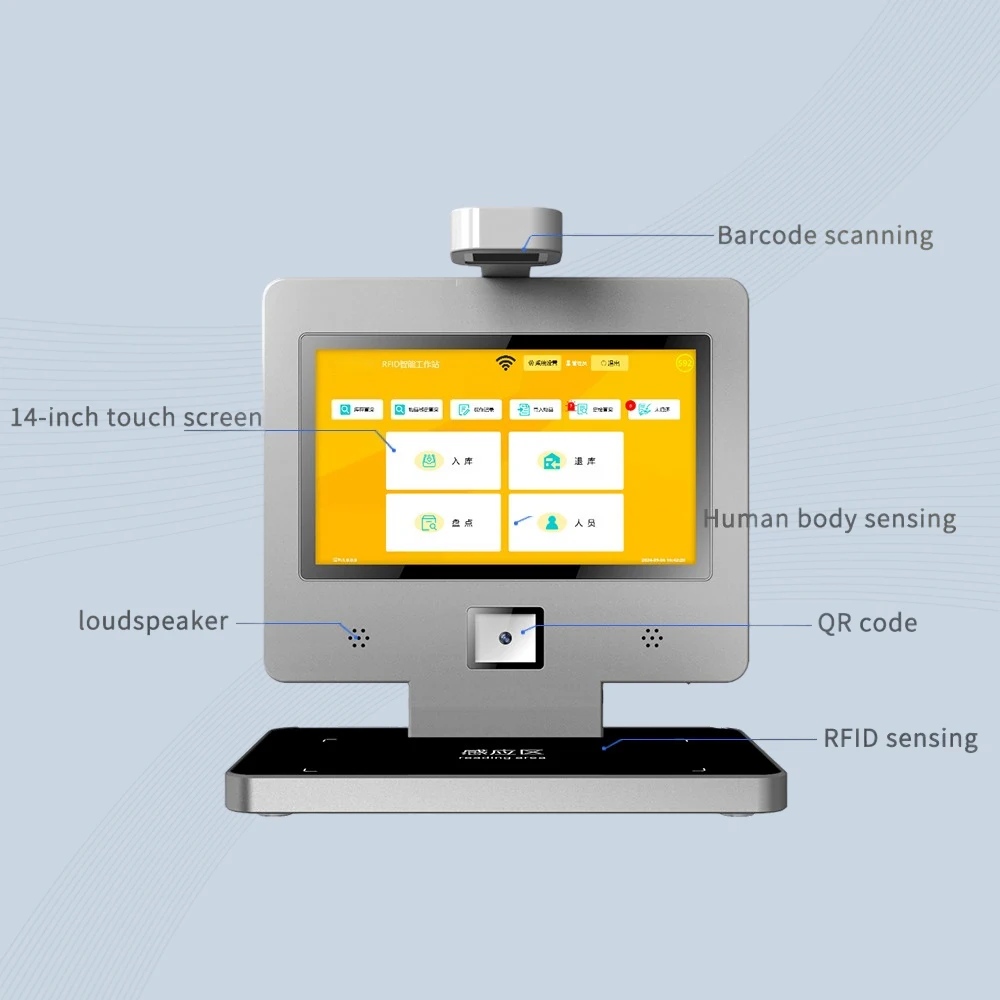

The GS-DPA UHF RFID Integrated Desktop Reader revolutionizesindustrial item identification with its 10.1" HD capacitivetouchscreen and multi-sensor integration. Engineered for bulkRFID tag commissioning, this desktop powerhouse simultaneouslyprocesses 50+ tags per operation through advanced anti-collisionalgorithms.

21.5-inch capacitive touch screen with 1920 × 1080 resolution
RFID technology 840~960MHz optional, support protocol extension
Multiple communication interfaces: RJ45
Support multiple permission setting, function expansion
Support registration of card information, optional Windows/Android system
Product appearance, function, protocols etc support customization

SPECIFICATIONS
RF SPECIFICATION
RF Chip	Impinj R2000
Frequency Range	840MHz～960MHz adjustable
Protocol	EPC C1G2, ISO 18000-6B, ISO 18000-6C
Function	RFID read function, Multiple label identification, Label Function label data filtering, RSSI perception, Quantity statistics
FUNCTION SELECTION
Weighing Function	Standard, accuracy 1g-30kg
Sound Light Alarm	Optional
CCTV Camera	Optional
Wireless Network	WiFi / 4G Optional
HARDWARE SPECIFICATION
System	Windows / Android (optional)
Hardware	I5 CPU,4G RAM, 128G ROM/ RK3399CPU,4GRAM, 16G ROM (optional)
Display	1920x1080,22-inch capacitive touchscreen
Communication	RJ45 10 / 100Mbps
Other Interface	4x USB3.0 + Gigabit Ethernet
BASIC SPECIFICATION
Material	Carbon steel plate
Power Supply	AC110-220V 50Hz 50W
Working Humidity	10%RH~90%RH
Operat Temperature	0 ºC ~ 60 ºC

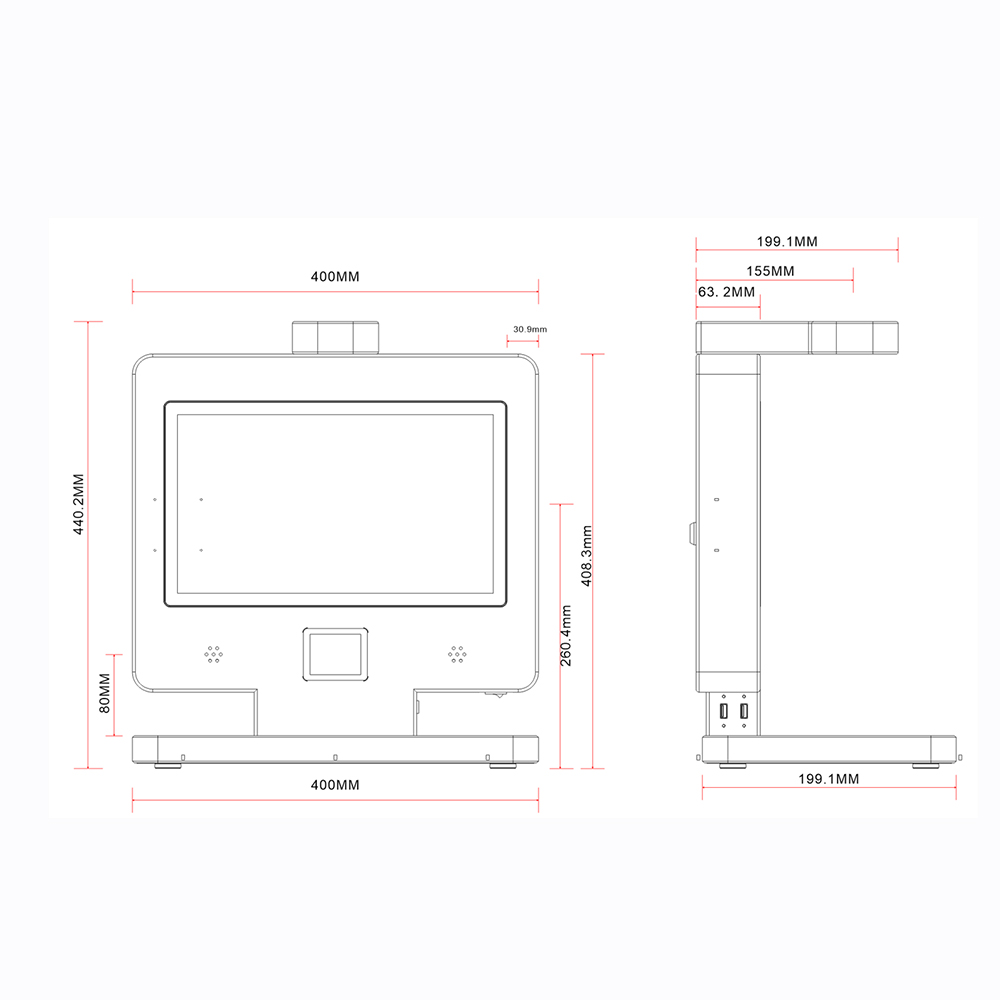

Size	408430250mm
