GS-DP4B Wall-Mounted RFID Chip Scanner Kiosk Enterprise-Grade Fixed RFID Scanning for Instant Asset Verification

The GS-DP4B Fixed RFID Verification Hub revolutionizes instant asset control through Impinj R2000 UHF technology, delivering:

Extreme Environment Reliability: Corrosion-resistant construction withstands demanding settings

Lightning-Field Identification: 0.5m radius scanning with multi-protocol tag compatibility

Space-Optimized Design: Wall-mounted configuration maximizes floor space utilization

Real-Time Data Synchronization: Windows/Android OS enables cloud-based inventory updates

Item No :
GS-DP4B
Frequency :
840MHz～960MHz adjustable
Protocol :
EPC C1G2, ISO 18000-6B, ISO 18000-6C
Chip :
Impinj R2000
Function :
RFID read function, Multiple label identification, LabeFunction label data filtering, RSSI perception, Quantity statistics

Inquiry Now

Wall-Mounted RFID Chip Scanner Kiosk

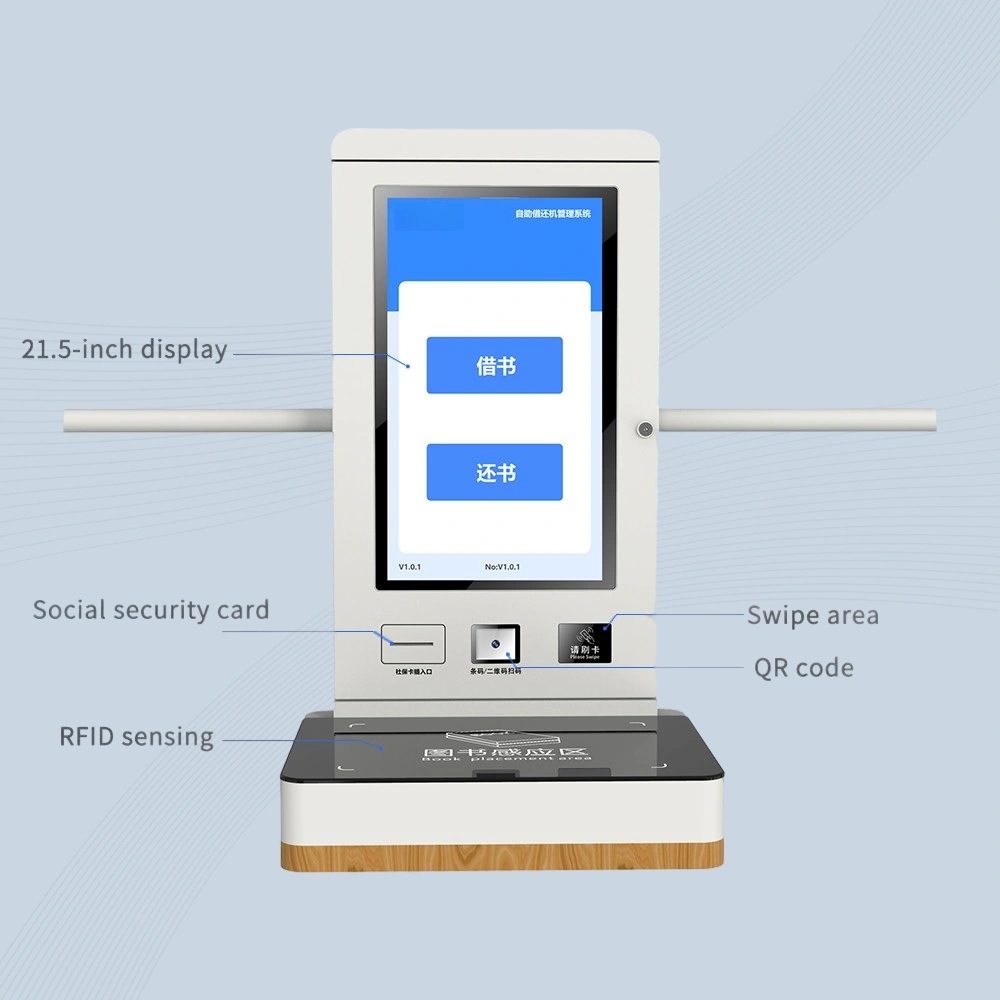

The GS-DP4B Wall-Mounted RFID Self-Service Kiosk revolutionizesspace-constrained environments with its integrated UHF RFIDsystem and 21.5" capacitive touch interface. Engineered for highdensity document management, it achieves 0.5m rapid scanningradius with ISO18000-6C compliance.

21.5-inch capacitive touch screen with 1920 × 1080 resolution
Ultra-Compact Wall Design (500mm Depth)
Multiple communication interfaces: RJ45, wifi, 4G etc
60+ Items/Sec Batch Processing via UHF RFID
IP54-Rated Durable Aluminum Housing
Product appearance, function, protocols etc support customization

SPECIFICATIONS
RF SPECIFICATION
RF Chip	Impinj R2000
Frequency Range	840MHz～960MHz adjustable
Protocol	EPC C1G2, ISO 18000-6B, ISO 18000-6C
Function	RFID read function, Multiple label identification, Label Function label data filtering, RSSI perception, Quantity statistics
FUNCTION SELECTION
Sound Light Alarm	Optional
CCTV Camera	Optional
Wireless Network	WiFi / 4G Optional
HARDWARE SPECIFICATION
System	Windows / Android (optional)
Hardware	I5 CPU,4G RAM, 128G ROM/ RK3399CPU,4GRAM, 16G ROM (optional)
Display	1920x1080,22-inch capacitive touchscreen
Communication	RJ45
BASIC SPECIFICATION
Material	Carbon steel plate, Glass
Power Supply	AC 110-220V 50Hz 50W
Working Humidity	10%RH~90%RH
Operat Temperature	0 ºC ~ 60 ºC
Size	42x 35 x 157cm
