GS-TP1B Industrial-Grade RFID Tunnel Scanning System High-Capacity Identification Solution for Modern Logistics
The Industrial-Grade RFID Tunnel Scanning System represents a significant advancement in bulk inventory management, utilizing sophisticated UHF detection technology operating across 840-960MHz frequencies. This comprehensive solution features a robust 1220×1450×2205mm shielded enclosure specifically designed to deliver exceptional performance in demanding industrial settings.High-volume processing capacity exceeding 1000 items per minute,Industrial protection rating (IP54) with reinforced steel construction,Advanced interference blocking within 10cm operational radius,Multi-protocol support for ISO18000-6C and EPC Gen2 standards,Continuous scanning capability of 100+ tags per second
Item No :
GS-TP1BFrequency :
840MHz～960MHz adjustableProtocol :
EPC C1G2, ISO 18000-6B, ISO 18000-6CChip :
Impinj R2000Function :
RFID read function, Multiple label identification, LabeFunction label data filtering, RSSI perception, Quantity statistics
The RFID-TP1B Tunnel Scanning Gateway is a high-efficiencyUHFRFID solution designed for industrial-scale inventory management.Equipped with ISO18000-6C protocol and dual-door shielding,itenables rapid batch scanning of 500+ items (e.g., smart meters,hotel linens, apparel) with 100 tags/sec accuracy.
| SPECIFICATIONS | |
| RF SPECIFICATION | |
| RF Chip | Impinj R2000 |
| Frequency Range | 840MHz～960MHz adjustable |
| Protocol | EPC C1G2, ISO 18000-6B, ISO 18000-6C |
| Function |
RFID read function, Multiple label identification, Label Function label data filtering, RSSI perception, Quantity statistics |
| FUNCTION SELECTION | |
| Sound Light Alarm |
Optional |
| CCTV Camera |
Optional |
| Wireless Network |
WiFi / 4G Optional |
| HARDWARE SPECIFICATION | |
| System |
Windows / Android (optional) |
| Hardware |
I5 CPU,4G RAM, 128G ROM/ RK3399CPU,4GRAM, 16G ROM (optional) |
| Display |
1920 × 1080, 14-inch capacitive touch screen( 21-inchoptional) |
| Communication |
RJ45 10/100Mbps |
| BASIC SPECIFICATION | |
| Material | Carbon steel plate, Glass |
| Power Supply | AC110-220V 50Hz 50W |
| Working Humidity | 10%RH~90%RH |
| Operat Temperature | 0 ºC ~ 60 ºC |

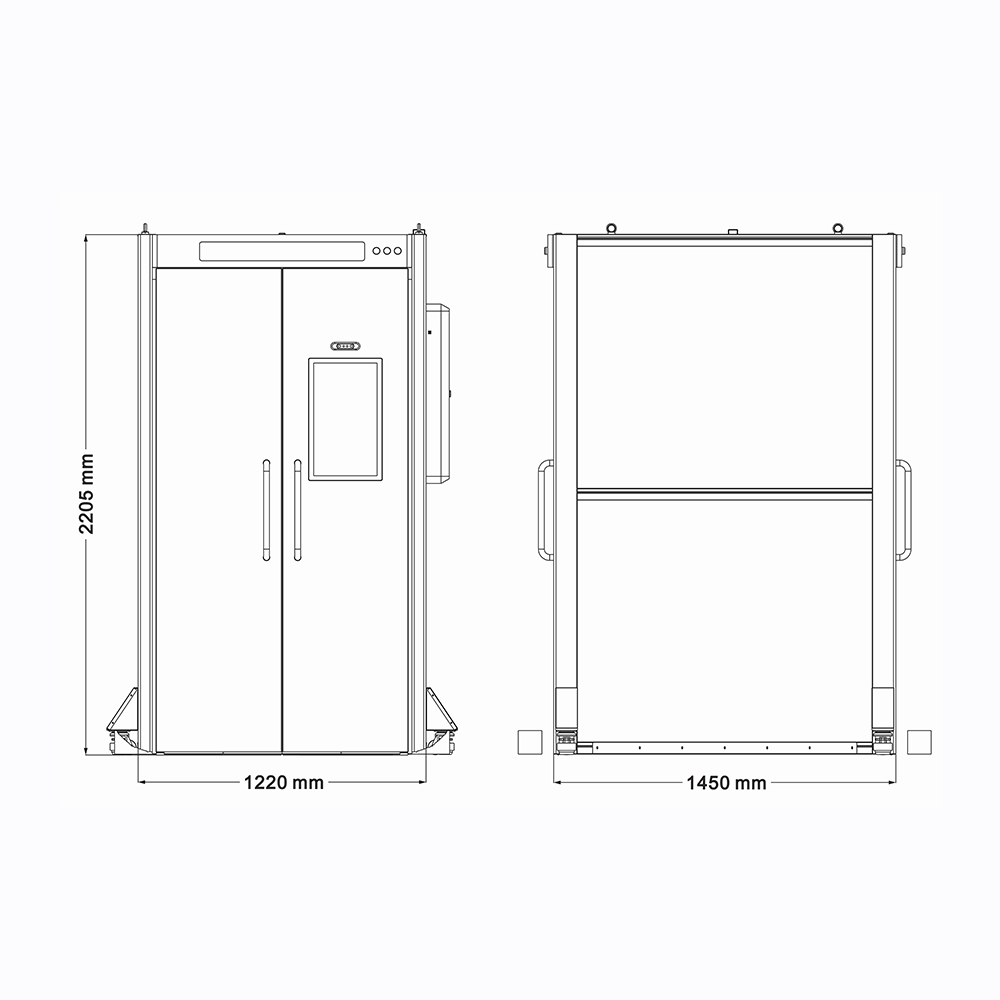

| Size | 1220*1450*2205mm |
