GS-GTC5 RFID Tool Inventory Cart Advanced Tool Control for Correctional Institutions Featuring

The GS-GTC5 represents a breakthrough in high-security tool management, leveraging ISO 18000-6C UHF RFID for uncompromising asset oversight. Housed within a robust 4-layer carbon steel enclosure, the system features an intuitive 10.1″ multilingual touchscreen that enables self-service tool transactions within 3 seconds. Engineered for continuous operation across extreme temperatures (0-60°C) with minimal energy consumption (≤150W), it delivers an 80% reduction in missing tools through instant alarm notifications—ensuring fully automated, 24/7 supervision without manual intervention.

Item No :
GS-GTC5
Frequency :
840MHz～960MHz adjustable
Protocol :
EPC C1G2, ISO 18000-6B, ISO 18000-6C
Chip :
Impinj R2000
Function :
RFID read function, Multiple label identification, LabeFunction label data filtering, RSSI perception, Quantity statistics

Inquiry Now

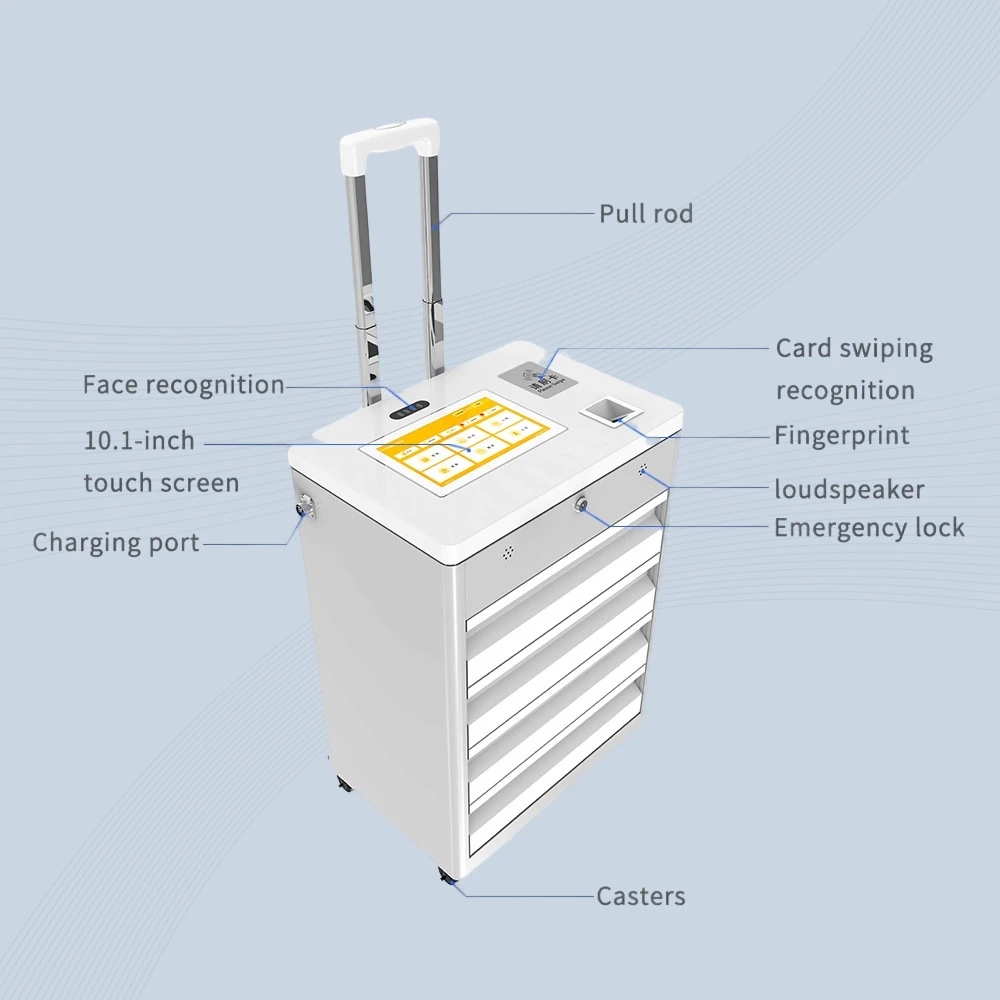

RFID Tool Inventory Cart

The GS-GTC5 RFID Intelligent Tool Cart revolutionizes prison toolmanagement with its UHF RFID scanning zone (840-960MHz), enabling self-service check-in/out and real-time inventory. Featuringa 10.1" multilingual touchscreen (Windows/AndroidOS), 4-layercarbon steel storage, and 150W power efficiency, it ensures10xfaster audits and 5x reduced tool loss in high-security environments.

10.1-inch capacitive touch screen with 1366*768 resolution
RFID technology 840~960MHz optional, support protocol extension
Multiple interfaces: RJ45, wifi, 4G, alarminput etc
Support multiple cabinets in parallel, optional Windows/Android system
Support automatic record receiving, return, constant temperature dehumidification preservation, regular calibration and inspection reminder

SPECIFICATIONS
RF SPECIFICATION
RF Chip	Impinj R2000
Frequency Range	840MHz～960MHz adjustable
Protocol	EPC C1G2, ISO 18000-6B, ISO 18000-6C
Product Capacity	1000 pcs (according of item size)
Read Range	5-50cm Adjustable
Read Speed	1-3 sec
HARDWARE SPECIFICATION
System Support	Windows / Android (optional)
Hardware	I5 CPU, 4G RAM, 128G RO Hardware M RK3399 CPU, 4GRAM, 16G ROM (optional)
Display	1366 × 788, 10.1-inch capacitive touch screen( 21-incDisplay hoptional)
Communication	4G/Wired
BASIC SPECIFICATION
Material	Carbon steel plate, Glass
Power Supply	AC 110-220V 50Hz 50W
Working Humidity	10%RH~90%RH
Operat Temperature	0 ºC ~ 60 ºC

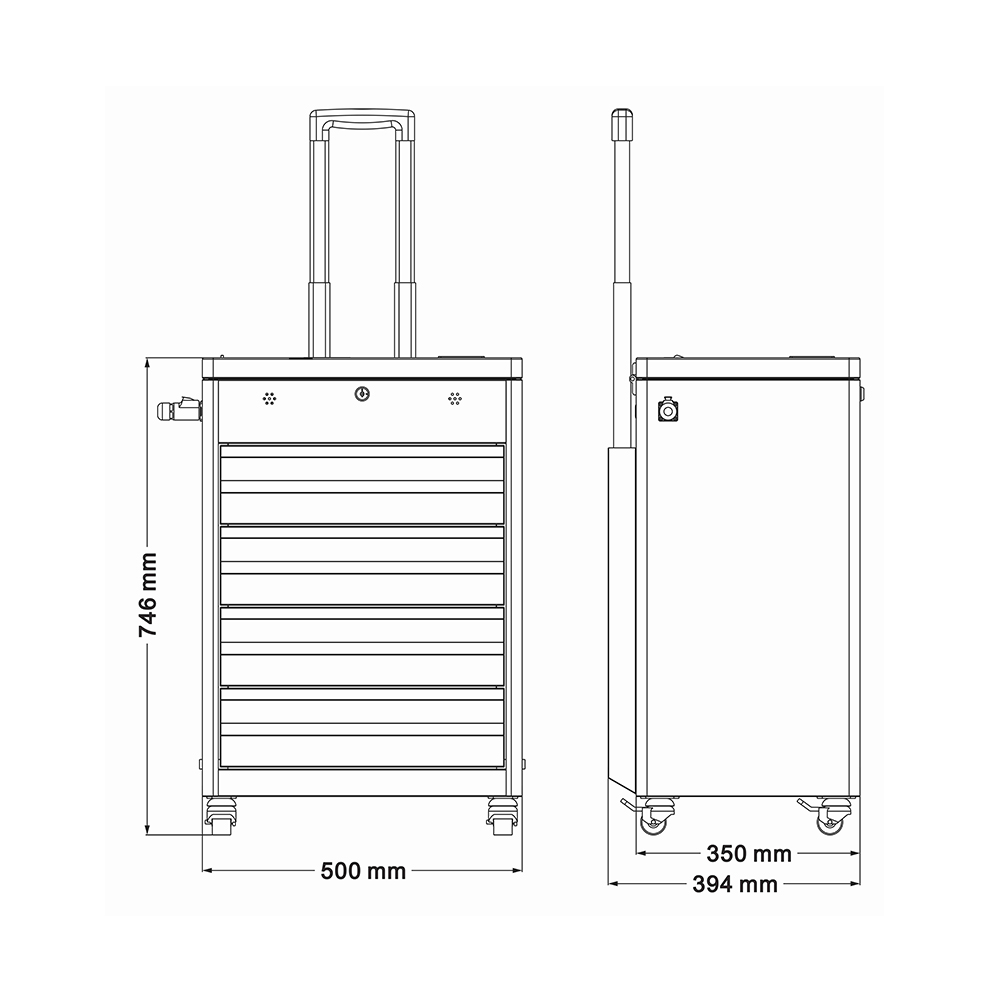

Size	746mm500mm394mm
