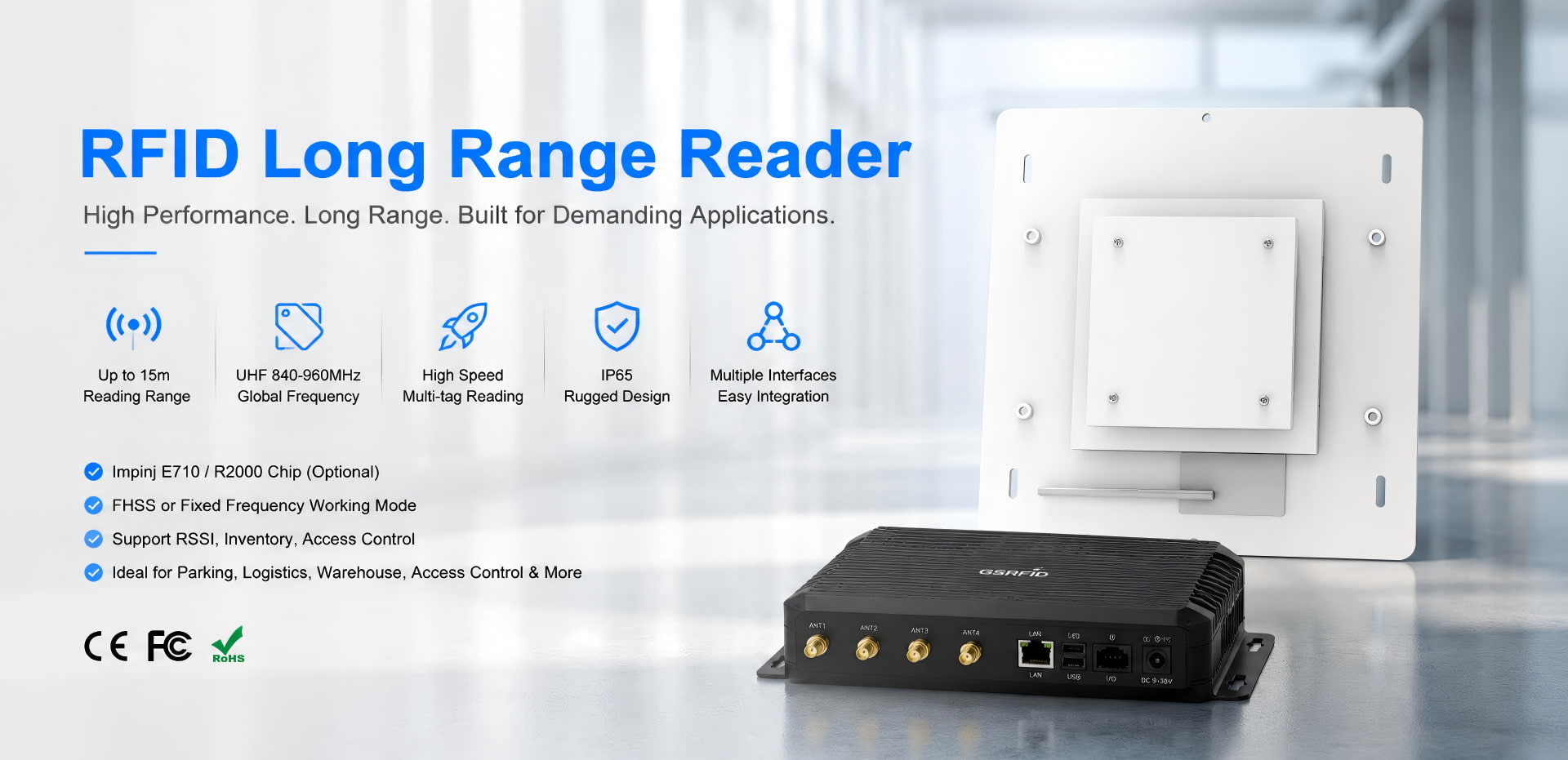

GS-A10A High-Precision Directional Antenna RFID Reader for Long-Range Tag Capture
This integrated antenna-reader solution forms the backbone of industrial UHF RFID systems, merging a focused-beam 10.5dBi antenna with enterprise-grade reader functionality. Its circular wave technology delivers expansive spatial coverage for tag acquisition across distribution centers, automated assembly lines, and intelligent parking infrastructure.
Item No :
GS-A10AFrequency :
840MHz～960MHzProtocol :
EPC C1G2, ISO 18000-6B, ISO 18000-6CChip :
Impinj R2000Function :
RFID read & write, Multiple label identification(For more RFID tag features, please use tagapplication software)
The GS-A10A 10.5dBi UHF RFID Antenna delivers superior RFperformance for demanding industrial applications. Engineeredwith wide 65° horizontal beamwidth and precision-tuned 902-928MHz frequency response, it ensures stable long-range tagreading in manufacturing plants, logistics hubs, and outdoor RFIDdeployments.
| SPECIFICATIONS | |
| RF SPECIFICATION | |
| RF Chip | Impinj R2000 |
| Frequency Range | 840MHz～960MHz |
| Protocol | EPC C1G2, ISO 18000-6B, ISO 18000-6C |
| Antenna Gain |
0-33 dbm adjustable |
| Read Distance |
0-15m adjustable |
| Polarization Type |
Circular |
| Peak Gain @915MHz |
10.5dBi |
| Axial Ratio |
≥15dB |
| H-plane HPBW |
65±8 |
| E-plane HPBW |
55±8 |
| VSWR |
≤1.2:1 |
| Impedance |
50Ω |
| Connector Type |
SMA-K |
| Size |

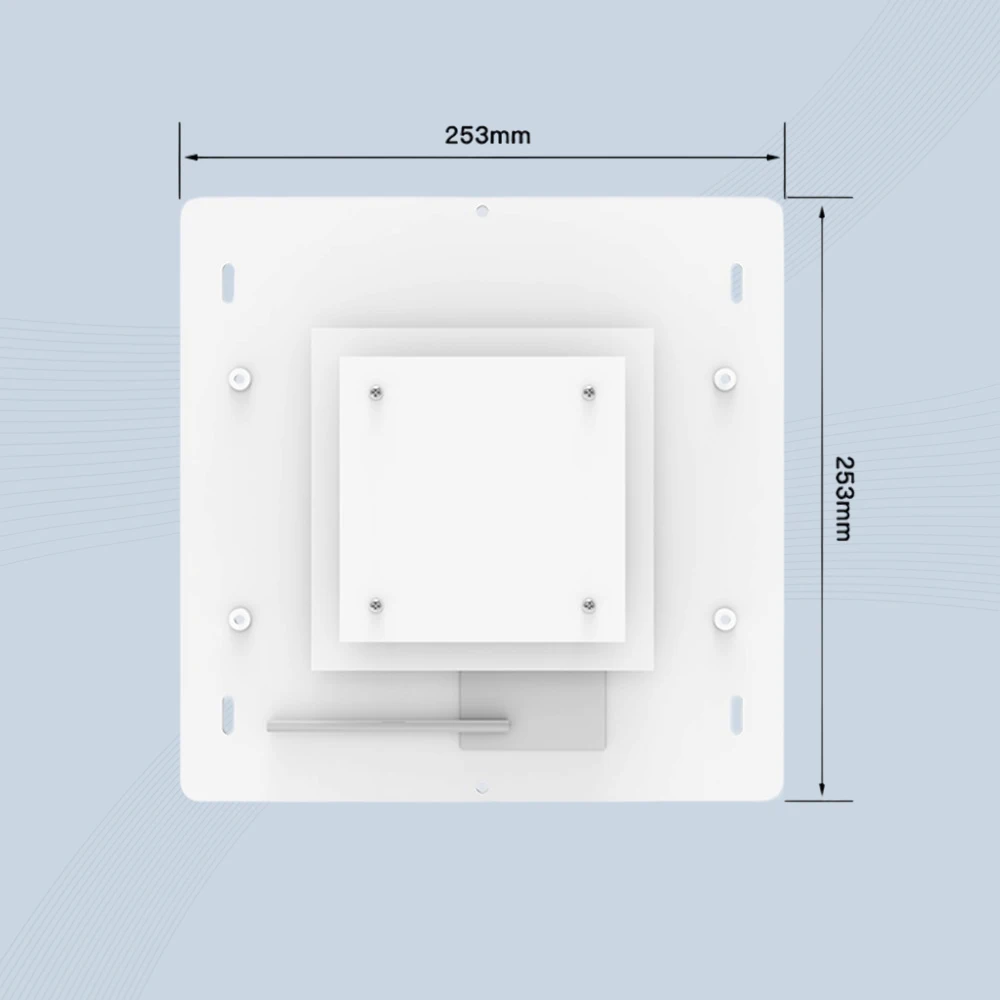

253*253*25 mm |
| Weight |
250g |
| BASIC SPECIFICATION | |
| Material | ABS+Aluminum 6061 |
| Working Humidity | 10%RH~90%RH |
| Operat Temperature | -40～55 ℃ |
| IP Rating | IP65 |
| Weight | About 2kg |
