Home Special RFID Tags

125KHz/13.56MHz/UHF Long Distance RFID Bin Plastic Tags Rfid Waste Bin Tag

125KHz/13.56MHz/UHF Long Distance RFID Bin Plastic Tags Rfid Waste Bin Tag

Multi-frequency RFID trash can management tag | Optional 125kHz/13.56MHz/UHF bands | Durable ABS/nylon material, IP68 waterproof, dustproof, and impact resistant. Screw/adhesive mounting, suitable for municipal trash cans, commercial trash cans, and recycling containers. Supports waste weighing and billing, collection and transportation traceability, and route optimization management. Stable long-range identification, durable for over 10 years outdoors.

  • Order(MOQ) :

    500
  • Material :

    ABS engineering plastic / Nylon (PA6) + epoxy resin filler
  • Feature :

    Waterproof and dustproof
  • Reading distance :

    1-10m
  • Frequency :

    125kHz / 13.56MHz / 860-960MHz
  • Protocol :

    ISO18000-6C & Gen2
  • Size :

    30mm ×15mm
  • Application :

    Municipal waste collection and transportation, residential community waste sorting, commercial office building waste bin management, industrial park waste tracking, smart city sanitation system

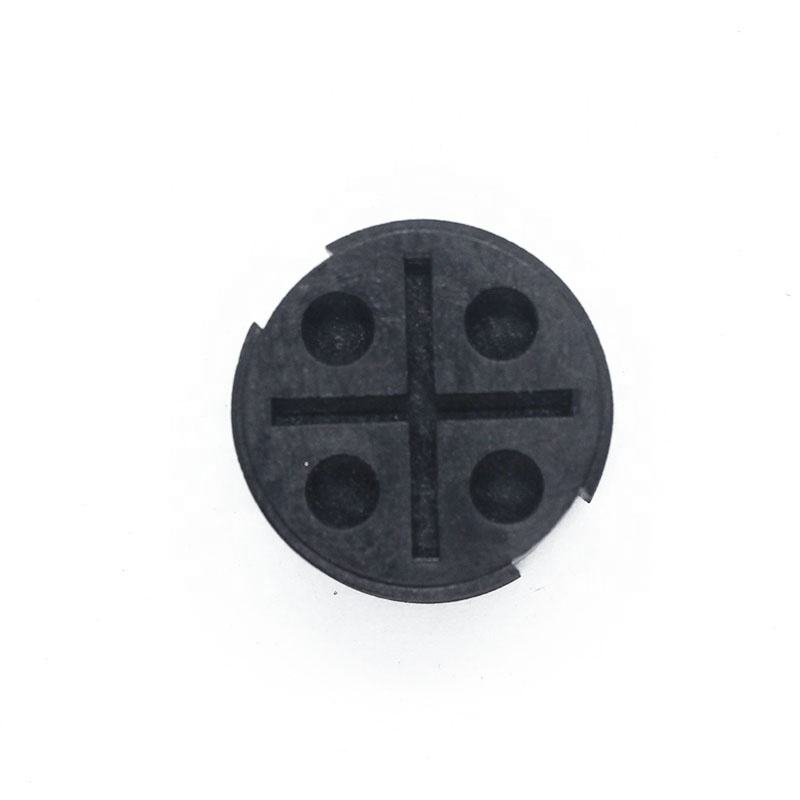

RFID Bin Tags:



Multi-frequency, long-range RFID trash can tags are designed specifically for urban sanitation management, waste sorting and tracking, and weighing and charging systems. They offer optional 125kHz low-frequency, 13.56MHz high-frequency, or UHF ultra-high-frequency chips to adapt to different reading and writing devices and management systems. The rugged ABS/nylon shell is IP68 waterproof and dustproof, resistant to chemical corrosion and impact, and can withstand harsh outdoor environments such as sun and rain, and collisions from garbage truck dumping. Supports screw fixing or adhesive bonding to plastic/metal trash can surfaces, offering long reading distances and stable identification. It can be integrated with waste weighing systems to achieve smart city management functions such as pay-as-you-go (PAYT), recycling rewards, and optimized collection routes. Suitable for municipal sanitation, property management, and commercial waste collection scenarios.




Specifications
Main Specifications
Brand GSRFID
Product Name Rfid Waste Bin Tag
Performance Parameters
Special Features Waterproof and dustproof
Chip Capacity 96-bit / 128-bit / 496-bit
Chips LF(EM4200、TK4100、T5577) HF(MIFARE Classic 1K、NTAG 213、F08)UHF(Alien Higgs-3、Impinj Monza R6/R6-P)
Read Range 1-6m
Material ABS engineering plastic / Nylon (PA6) + epoxy resin filler
Protocol ISO 18000-6C / EPC Gen2
Frequency 125kHz(LF)/ 13.56MHz(HF)/ 860-960MHz(UHF)
Size Customized
Application Municipal waste collection and transportation, residential community waste sorting, commercial office building waste bin management, industrial park waste tracking, smart city sanitation system
Operating temperature -25℃ ~ +85℃

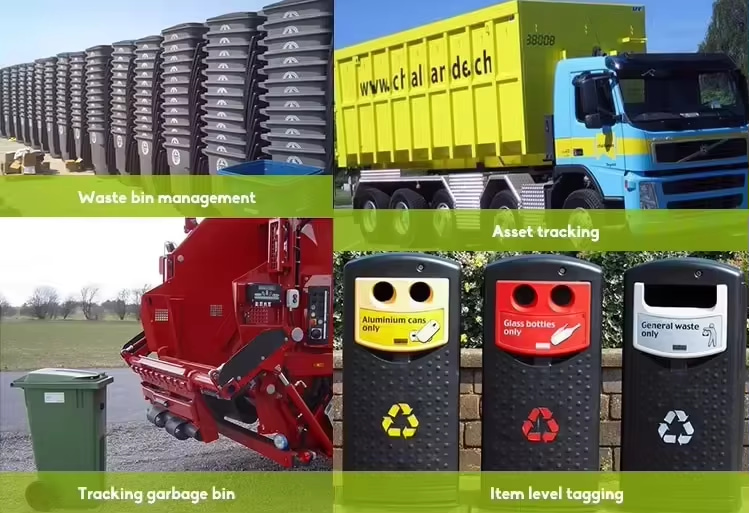

Application



FAQ



Q: Are you factory or trader?

A: We are manufacturer with more than 20 years of experience

Q: How long would it take to receive my order after the payment?

A: Lead time will depend on the logistic service provider so as to your location. We will arrange the best suitable logistics and despatch the items once payment is received.

Q: Can you provide free samples?

A: Yes, we can provide samples for testing.

Q: Can you print my logo on the item?

A: Absolutely, we welcome OEM/ODM request. Please contact us to get more detailed info.

Q: How should I contact you?

A: Please leave your email address and phone number below, and we will contact you within 1 hour.
