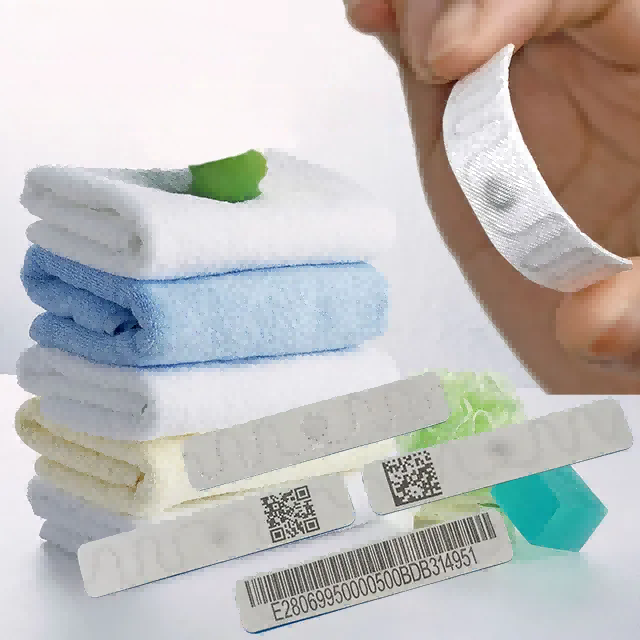

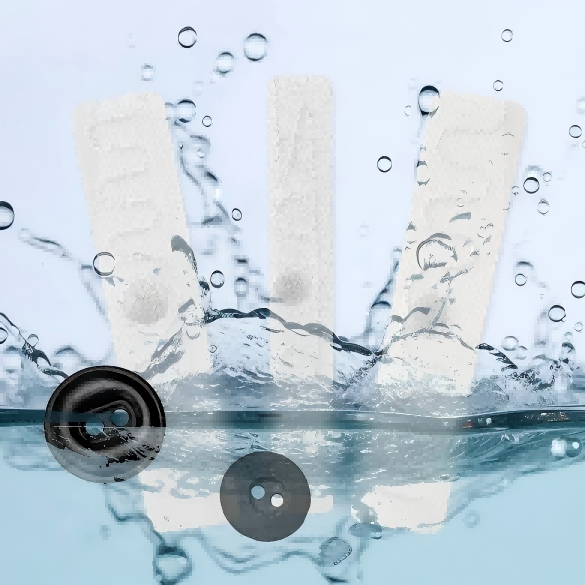

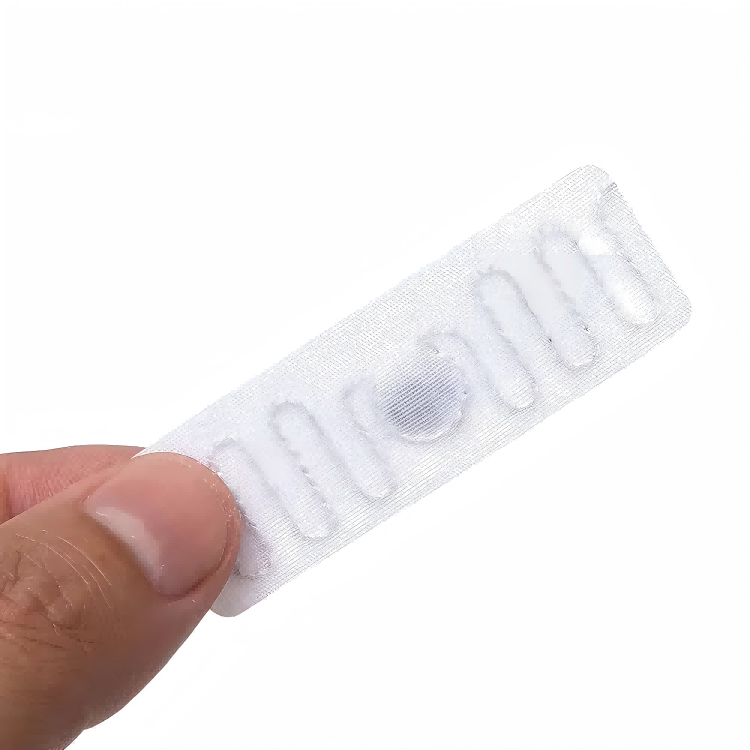

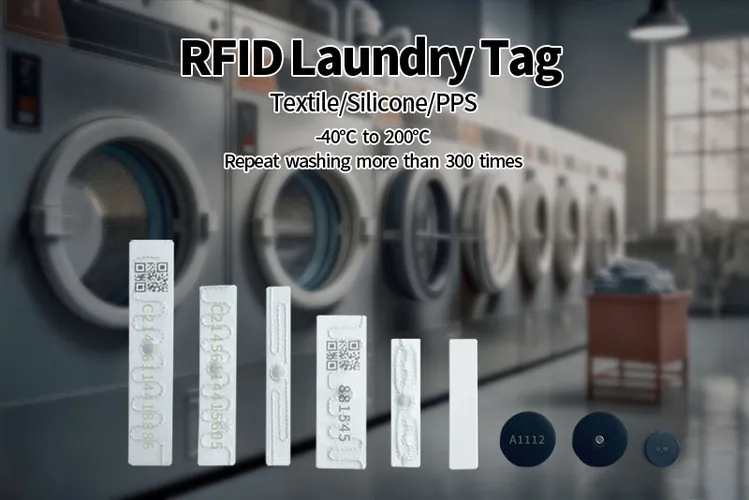

Ultra-high frequency, long-range RFID tags for laundry are specifically designed for industrial linen management. Operating at 860-960MHz, they are compatible with the ISO 18000-6C standard and encapsulated in flexible textile materials, allowing for comfortable and unobtrusive integration into the fabric. The long-range reading design eliminates the need for individual contact during bulk inventory checks, significantly improving efficiency. They can withstand over 200 industrial washing cycles, are resistant to high temperatures and chemical detergents, and are suitable for hotels, hospitals, and large-scale laundry rental applications.
Order(MOQ) :
1000Lead Time :
5-7daysMaterial :
PolyesterFeature :
Printable,waterproof & durbaleReading distance :
5-8mFrequency :
860-960MhzProtocol :
ISO 18000-6C / EPC Gen2Size :
70×15mm / 76×18mm / CustomizedPrinting :
Offset Printing,barcode,serial No.

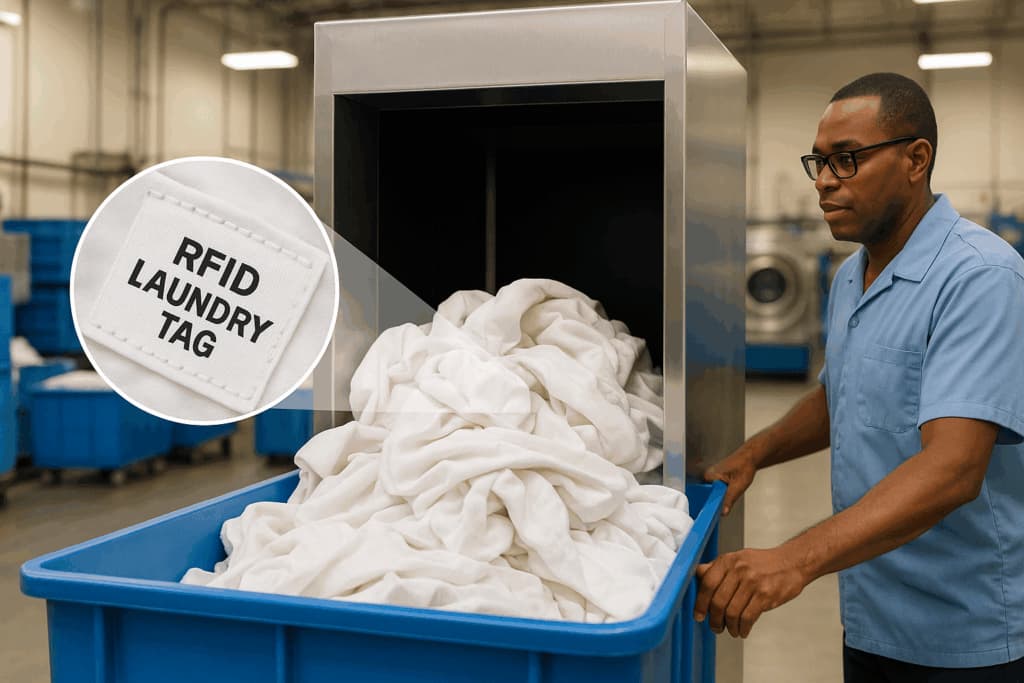

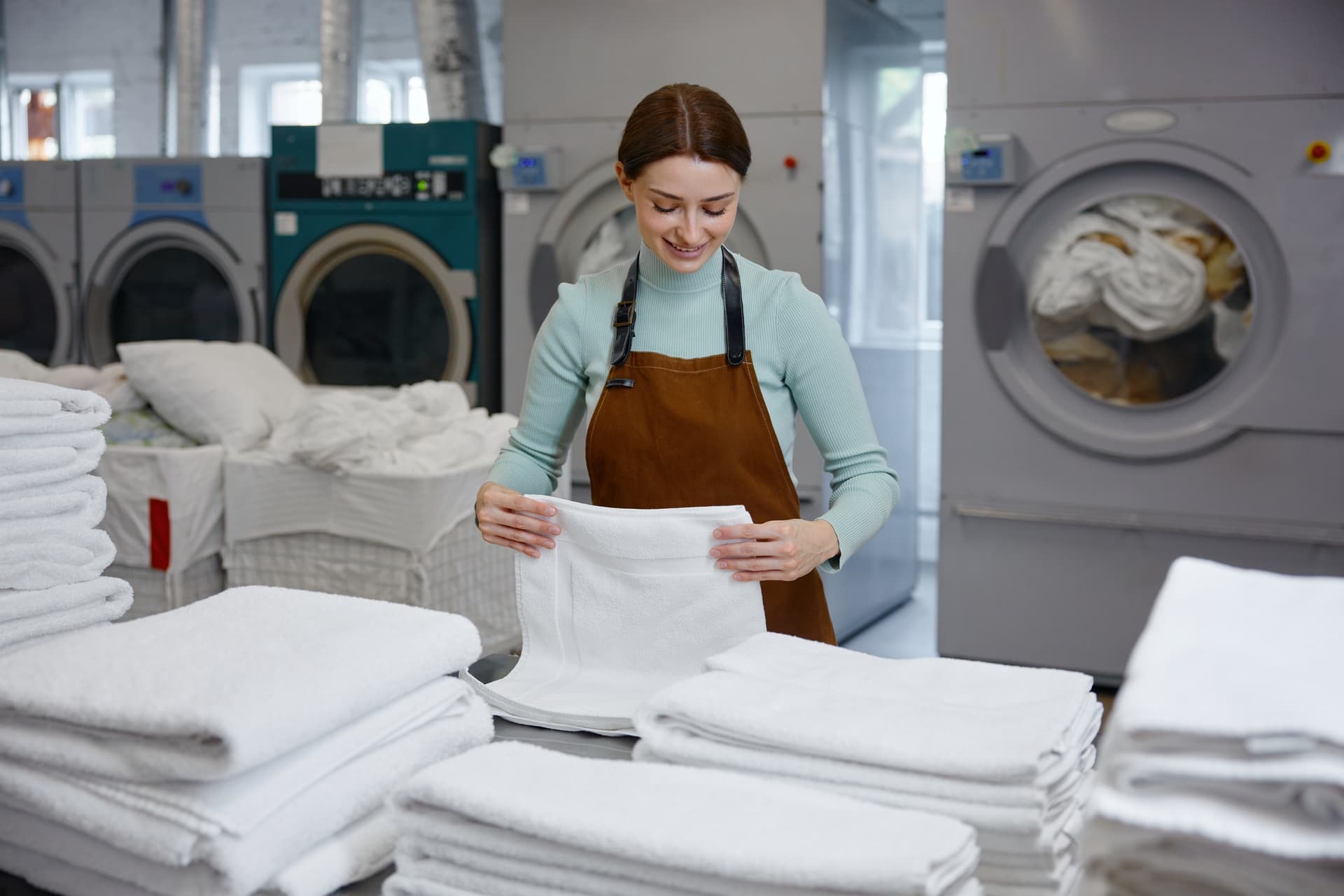

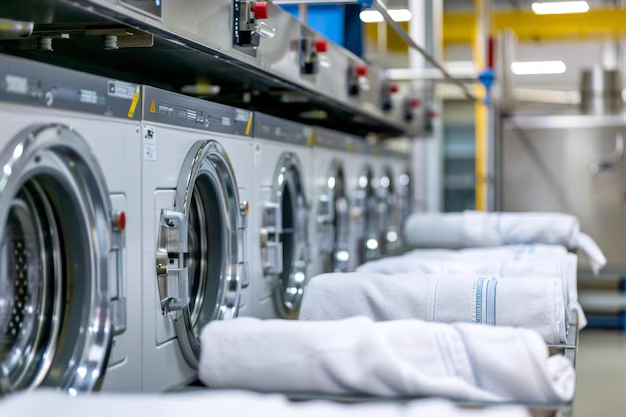

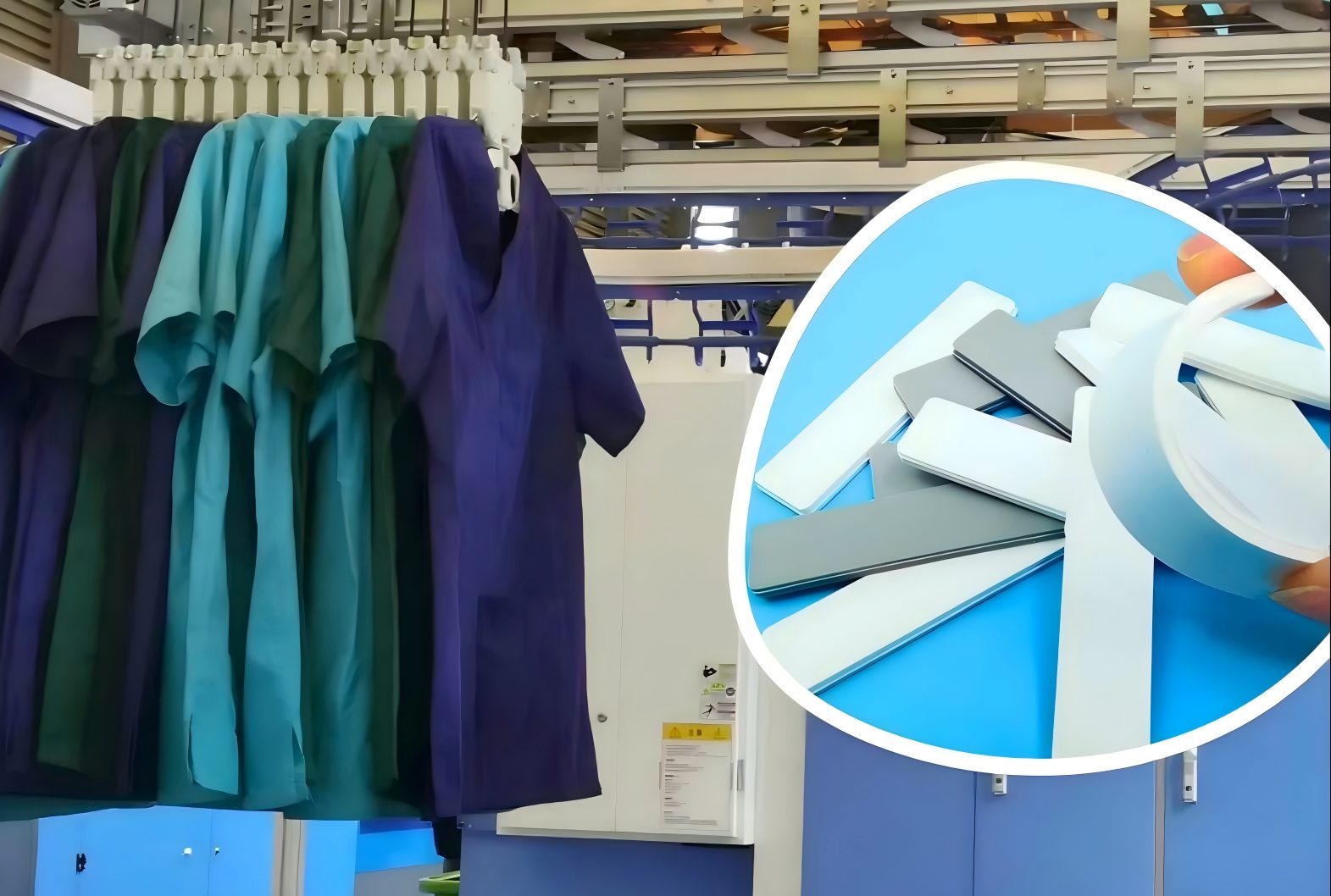

Achieve efficient laundry management using RFID tags:
Automated tracking: Manage washing, ironing, and sorting;
Inventory management: Real-time tracking reduces loss and theft;
Rental services: Simplify rental and return processes;
Maintenance information: Instant access to maintenance records;
Enhanced experience: Quick identification of returned items.
| Specifications | |
| Main Specifications | |
| Brand | GSRFID |
| Product Name | RFID Laundry Tags |
| Performance Parameters | |
| Frequency | 13.56Mhz/860-960Mhz |
| Protocol Support | ISO18000-6C & Gen2 |
| Operating Mode | Passive |
| Dimensions | Customizable |
| Material | Polyester |
| Chip | NXP UCODE 9, Customizable |
| Reading Distance | 6-7m(Fixed reader, 30dBm/9dBi), 1-4m(Handheld reader, 30dBm/4dBi) |
| Life time | 200 times industrial washing |
| Applications | Linens Managenemt, Uniform Management, Hospital Laundry Management, Hotel Laundry Management, Industrial Textile Management, etc. |
| Operating Environment | |
| Operating Temperature | 85℃ bearable |
What Is RFID Tag?
A Radio Frequency Identification Tag (RFID tag) is an electronic tag that exchanges datawith a RFID reader through radio waves.
Most RFID tags are made up of at least two main parts. The first is an an antenna, whichreceives radio frequency (RF) waves. Thesecond is an integrated circuit (IC), which is usedfor processing and storing data, as well as modulating and demodulating the radio wavesreceived/sent by the antenna.
How Does A RFID Tag Work?
Reader transfers energy to the transponder by emitting electromagnetic waves throught air.
Transponder uses RF energy to charge up.
Transponder receives command/data signal and responds accordingly.
Reader receives transponder response and process accordingly. ie. sent to a host computer or externaldevices through its control lines

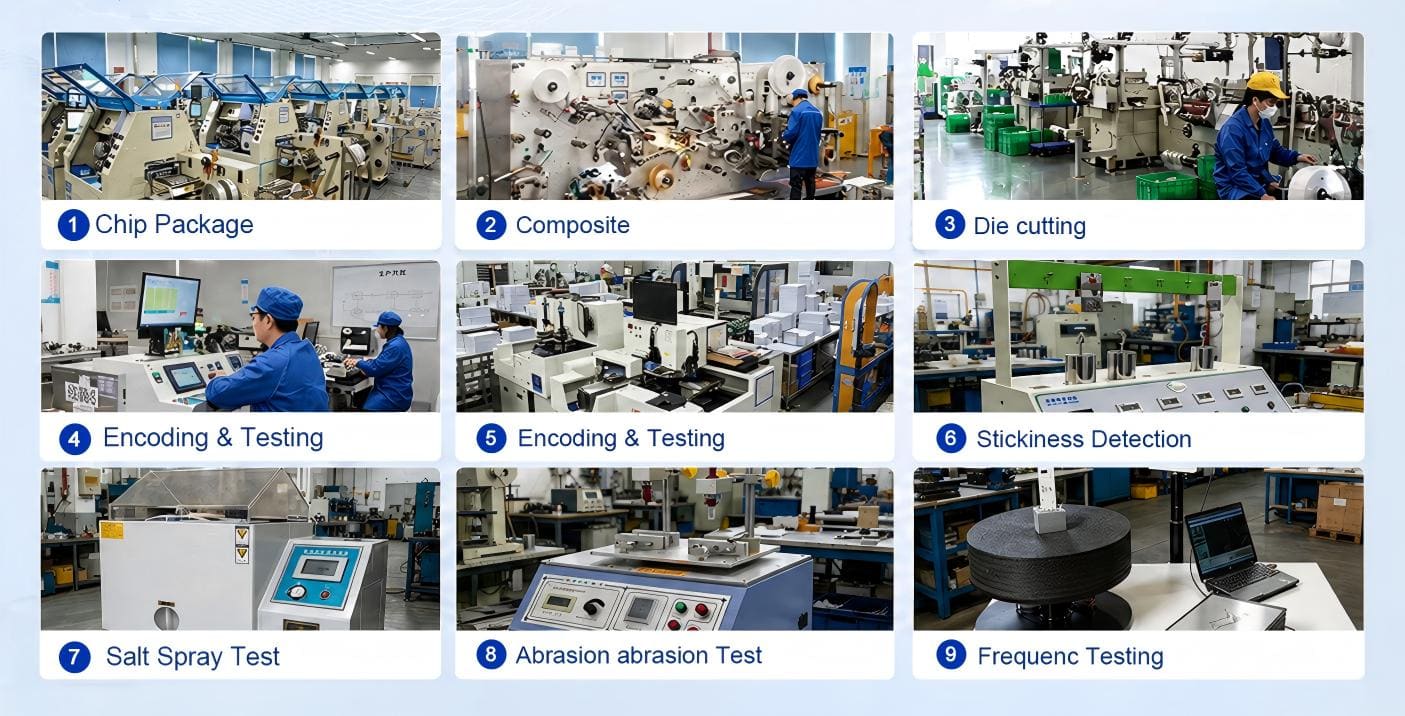

Custom Manufacturing:
GSRFID boasts over 20 years of OEM and ODM experience in RFID tags and stickers, offering superior product quality and customization capabilities. We have a dedicated production facility of over 5000 square meters, equipped with multiple automated production lines. We can customize RFID tags to meet your project requirements. Inquire now!
Packing&Shipping
FAQ
Q: Are you factory or trader?
A: We are manufacturer with more than 20 years of experience
Q: How long would it take to receive my order after the payment?
A: Lead time will depend on the logistic service provider so as to your location. We will arrange the best suitable logistics and despatch the items once payment is received.
Q: Can you provide free samples?
A: Yes, we can provide samples for testing.
Q: Can you print my logo on the item?
A: Absolutely, we welcome OEM/ODM request. Please contact us to get more detailed info.
Q: How should I contact you?
A: Please leave your email address and phone number below, and we will contact you within 1 hour.
