Long-range UHF RFID parking vehicle tags are designed for vehicle access control, parking management, and automatic passage identification. Operating at 860-960MHz, compatible with the EPC Gen2 (ISO 18000-6C) standard, and equipped with a high-performance Impinj Monza R6 or U8 chip, they offer a reading distance of 1-10 meters, supporting long-distance automatic vehicle identification without the need to stop and open the window to swipe a card. Made with high-quality PET material, they are waterproof, scratch-resistant, and UV-resistant, ensuring they won't fade or peel even after long-term outdoor use, adapting to various extreme weather conditions. An optimized antenna design for attachment to the inside of the windshield effectively reduces signal attenuation from glass and metal vehicle bodies. Featuring strong adhesive backing for easy application, they support pre-writing of EPC codes (binding license plate numbers) and custom surface printing, making them a reliable choice for parking lot access control, community vehicle management, and highway ETC.

What Is RFID Tag?

A Radio Frequency Identification Tag (RFID tag) is an electronic tag that exchanges datawith a RFID reader through radio waves.

Most RFID tags are made up of at least two main parts. The first is an an antenna, whichreceives radio frequency (RF) waves. Thesecond is an integrated circuit (IC), which is usedfor processing and storing data, as well as modulating and demodulating the radio wavesreceived/sent by the antenna.

How Does A RFID Tag Work?

Reader transfers energy to the transponder by emitting electromagnetic waves throught air.

Transponder uses RF energy to charge up.

Transponder receives command/data signal and responds accordingly.

Reader receives transponder response and process accordingly. ie. sent to a host computer or externaldevices through its control lines

Specifications
Main Specifications
Brand	GSRFID
Product Name	RFID Windshield Tags
Performance Parameters
Frequency	860-960Mhz
Protocol Support	ISO 18000-6C / EPC Gen2
Dimensions	100×30mm / 105×25mm / Customizable
Material	PET / Coated Paper / Synthetic Paper
Chip	Impinj Monza R6 / R6-P / Alien Higgs-3 / NXP UCODE 8/9/ Customizable
Memory	128bit, 256bit
Reading Distance	3-20m
Package	1000-2500pcs/roll, 4 rolls /carton
Applications	Parking lot access control, residential community vehicle management, highway ETC, government agency vehicle identification, fleet management, gas station member identification
Operating Environment
Operating Temperature	-70℃/ 20%~90% RH.
Storage Temperature	-20~50℃ / 20%~90% RH(Without condensation).

How to distinguish RFID labels

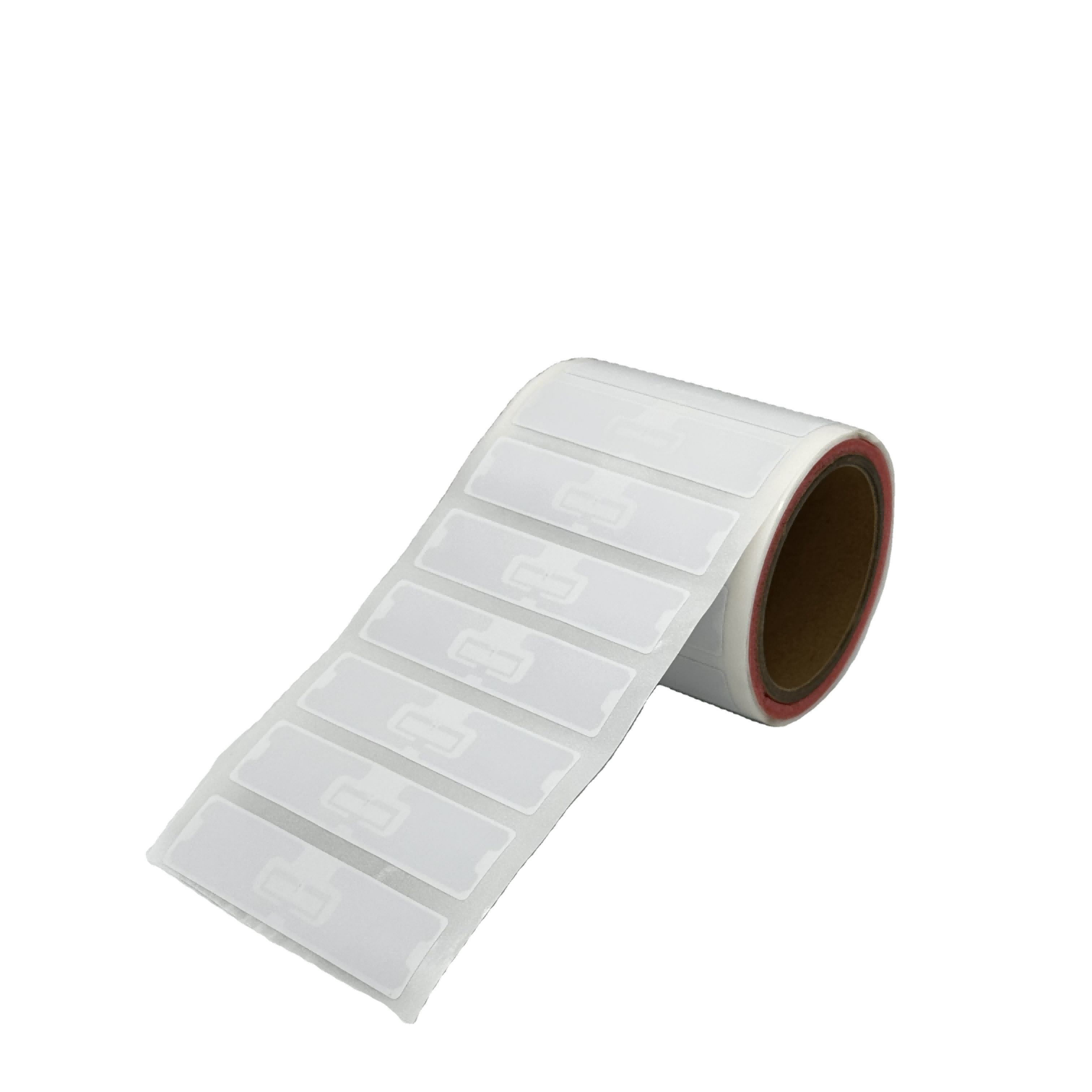

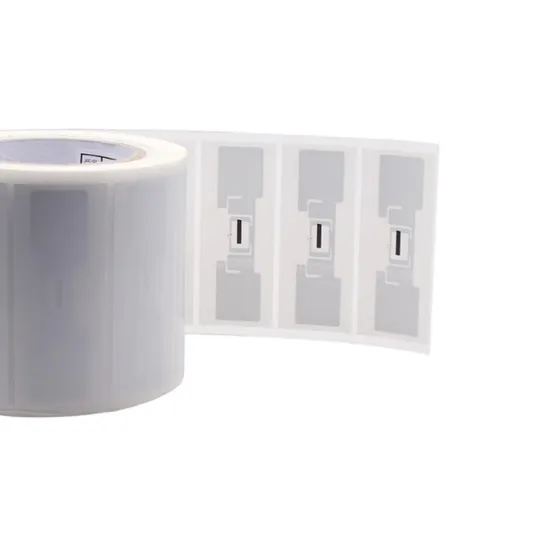

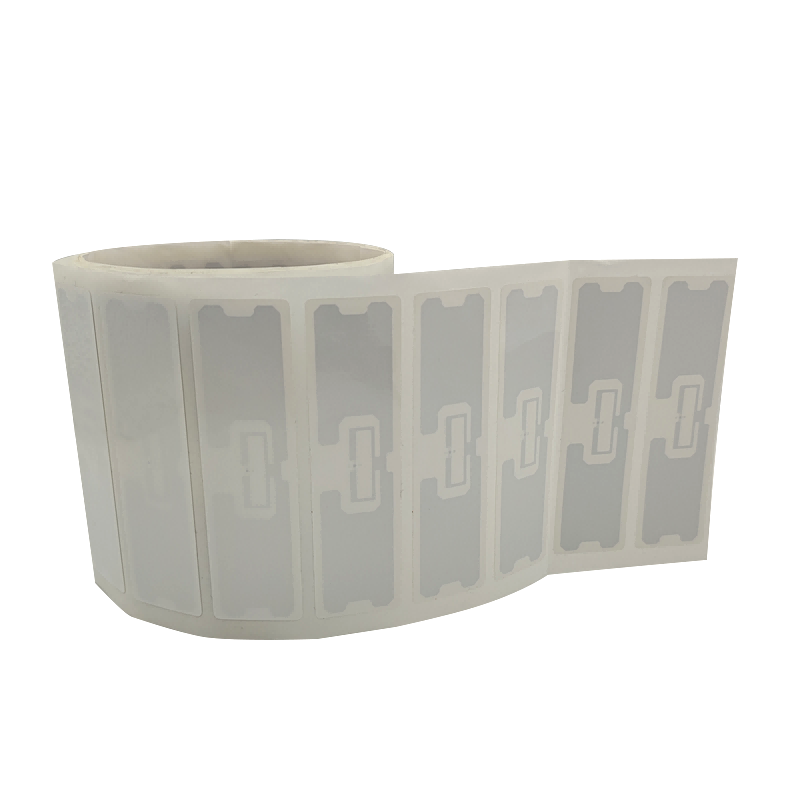

Normal RFID label
Used on non-metallic and liquid surfaces

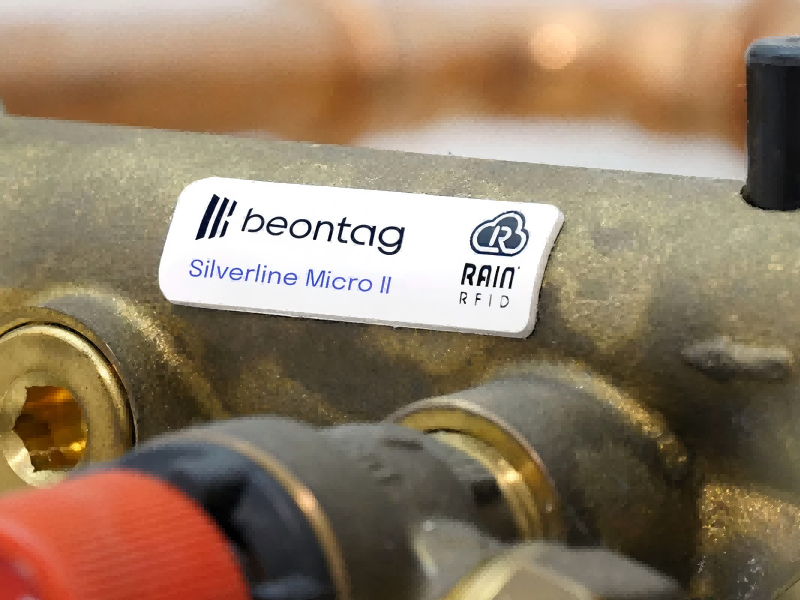

Soft on-metal RFID label

Used on metallic surfaces,with a longer reading range
Anti-liquid RFID label
Used on containers containing liquids, with a long reading range
Washable RFID label

Washable,corrosion-resistant,and high-temperature resistant

Production customization process

Production customization：

GSRFID boasts over 20 years of RFID tag and sticker OEM/ODM experience, providing superior product quality and customized services. We have a dedicated production plant of over 5,000 square meters, equipped with multiple automated production lines. Our products are ISO9001, CE, and FSC certified, ensuring product quality. The company possesses advanced testing equipment and a professional R&D team. We can customize RFID tags to meet your project requirements. Inquire now!

Packing&Shipping

FAQ

Q: Is your company a factory? Do you have a price advantage compared to other suppliers?

A: Yes, we are an RFID tag manufacturer with a significant price advantage, while guaranteeing product quality and supply stability.

Q: Can I get samples before placing orders?

A: Yes, We can provide free samples.

Q: What is the delivery time after I place an order?

A: Delivery time is 7-12 days, and for customized products, it is generally 15-25 days depending on the complexity. Expedited delivery can be negotiated.

Q: What customization requirements are supported?

A: Yes, we support full customization, including custom sizes, chips, printing, and data writing.

Q: Do flexible anti-metal tags have a long reading range?

A: Excellent read range, Our flexible anti-metal tags feature a special antenna design that provides a read range approximately 20% to 30% greater than that of other similar products.

Q: What certificates do you have?

A: Yes, we have FSC, CE, ROHS, ISO9001, etc.
